Mi-Wave932-10/20/10/SMAF-2倍頻器

披露時長：2024-05-30 08:37:17 手機瀏覽：773

　　Mi-Wave932-10/20/10/SMAF-2倍頻器是Mi-Wave的93系列中的一款有源倍頻器，采用高性能MMIC芯片進行倍頻和放大處理。

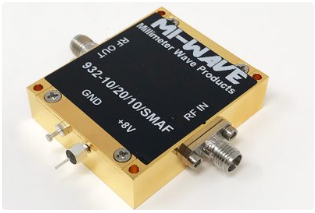

Mi-Wave932-10/20/10/SMAF-2倍頻器

　　Mi-Wave 的 93(x) 系列倍頻器具有以下特征：

　　1. 獨角獸高達全波導頻段遍及：　　2. 可以低鍵入動力電平：　　3. 低次諧波：　　4. 高內容輸出效率

　　應用:

　　1.各種測試實驗性室　　2. 子零部件　　3. 本土自由振蕩器　　4. 5G和6G體統

　　產品型號：

Model Number	Input Low Frequency ÷ GHZ)	Input High Frequency÷ (GHZ)	Output Low Frequency (GHz)	Output High Frequency (GHz)	Input Power (dBm)	Output Power (dBm)	Input Port	Output + Port	DC Bias	X Factor
932- 10/20/10/SMAF- 2	5	10	10	20	+11 to 16 nominal +17 max.	+7 to +10 nomina	SMA-Feamle	SMA- Feamle	+8V@105mA,+12V max	2
932AF 20/599/KF	13.25	20	26.5	40	0 to +5 nominal, +10 max.	20 nominal	K-Female	WR-28 waveguide, UG-599/U Flange	+8 V@470mA,+15 V max	2
932KF-10/KF	9	13.25	18	26.5	+5 nominal, +10 max	+15 nomina	K-Female	K-Female	+8 V@82 mA,+15 V max	2
932KF- 30/3.5mmF	9	13.25	18	26.5	+3 to +5 nominal, +10 max.	+31 nominal	3.5 mm Female	3.5 mm Female	+6V@1.35A,+12 V max	2
934BF-10/383	8.25	12.5	33	50	+2 nominal, +5 max.	+10 nomina	K- Female/SMA- Female	WR-22 waveguide UG-383/U Flange	+8V@0.250 A,+12V max	4
934BF-13/383	8.25	12.5	33	50	0 to +2 nominal,+5 max	+14.5 nominal	K- Female/SMA- Female	WR-22 waveguide UG-383/U Flange	+8V@0.280 A,+12V max	4
934EF-20/387	15	22.5	60	90	+5 to +7 nominal +12 max.	+20 nominal	K- Female/SMA- Female	WR-12 waveguide UG-387/U Flange	+6 to +8V@650mA,+12V max	4
934UF-10/383	10	15	40	60	0 nominal +10max	+13 nomina	K- Female/SMA- Female	WR-19 waveguide UG-383/U- M Flange	+6V@143mA,+6V max	4
934VF-10/385	12.5	18.75	50	75	+5 nominal, +10 max	+11 nominal	K- Female/SMA- Female	WR-15 waveguide UG-385/U Flange	+8V@270mA,+15v max	4
934VF-15/385	12.5	18.75	50	75	+5 nominal, +10 max	+15 nominal	K- Female/SMA- Female	WR-15 waveguide, UG-385/U Flange	+10V@321mA,+15V max	4
936EF-10/387	10	15	60	90	+4 nominal,+10 max.	+13 nominal	K- Female/SMA- Female	WR-12 wavequide UG-387/U Flange	+6V@237mA,+12V max	6
936EF-20/387H	10	15	60	90	+5 nominal, +10 max	+20 nomina	K- Female/SMA- Female	WR-12 waveguide UG-387/U Flange	+6V@540mA,+12V max	6
936WF-10/387	12.5	18.33	75	110	+6 nominal,+10 max	+10 nomina	K- Female/SMA- Female	WR-10 waveguide UG-387/U- M Flange	+6V@309mA,+12V max	6
936WF-15/387	12.5	18.33	75	110	+5 to+10 nominal +15 max.	+16 nominal	K- Female/SMA- Female	WR-10 waveguide UG-387/U- M Flange	+12V@500mA,+15V max	6
936WF-20/387	12.5	18.33	75	110	+5 to+10 nominal, +15 max	+20 nominal	K- Female/SMA- Female	WR-10 waveguide UG-387/U- M Flange	+13V@410mA,+15V max	6
938EF-16/387H	7.5	11.25	60	90	+3 to +5 nominal, +10 max	+17 nomina	K- Female/SMA- Female	WR-12 waveguide UG-387/U Flange	+8V@590mA,+12V max	8
938W- 80/106/15/388	8.9	11.78	80	106	+7 nominal, +10 max	+15 nominal	K- Female/SMA- Female	WR-10 waveguide, UG-387/U- M Flange	+13V@180mA,+15V max	9
938WF-10/387	10	13.25	80	106	+7 nominal, +10 max	+15 nominal	K- Female/SMA- Female	WR-10 waveguide UG-387/U- M Flange	+6V@180mA,+12V max	8

南京市立維創展科技產業有限集團公司英文集團公司商標授權一級代理銷售額Mi-Wave毫米（mm）波設備，Mi-Wave是商業應用型和航天軍工用分米波設備的各國卓越者，應該作為分米波電子元器件和控制模塊解決情況報告。設備的線適用于：縮放器、混頻器、衰減器、濾波器、啟閉、T/R、同軸電纜、光平面反射鏡等，所主要包括幾率可以達到320GHz。歡迎詞咨訊。
