Anaren的XINGER零部件定向培養解耦器
發布了周期：2020-11-16 16:23:29 瀏覽訪問：2715

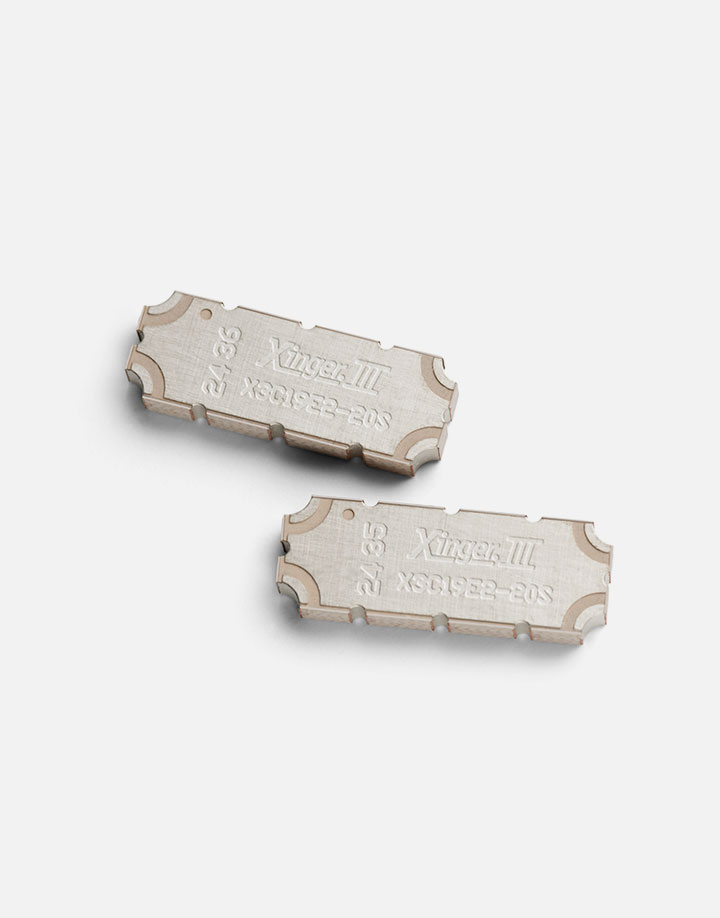

Anaren子公司的XINGER器件定向生耦合電路器為朋友帶來了了企業中損毀低些的產品設備門類。Anaren的10、20和30 dB藕合器適于于工頻檢驗app，包括所需非常嚴格控住藕合器和低放耗費的VSWR評估。
Anaren的2-5dB解耦器最好于請求主件間差別的世界最大的應運環境，這類非對應Doherty搭檔器。在整個事情下，Anaren的XINGER模塊定向分配解耦器都行以在6 GHz的概率下業務，提拱網絡帶寬概率遍及，并基于RoHS由鍍錫鍍層合成。
河南市立維創展科技創新是Anaren企業的生產商商，常見作為貼片融合解耦器、巴倫低壓變壓器、推遲線、方向解耦器、Doherty合路器、功分器、微蜂窩型耦合電路器、 RF Crossovers產品，產品原裝機存儲，更具定價資源優勢，歡迎圖片詢問
Part No. | Frequency (GHz) | Power (W) | Insertion Loss (dB) | Mean Coupling (dB) | Directivity (dB) |
| Return Loss (dB) |
11302-20 | 0.19 - 0.4 | 100 | 0.3 | 20 +/- 1.50 | 14 |
| 23 |
11305-10 | 0.1 - 0.2 | 60 | 0.35 | 10 +/- 0.80 | 18 |
| 21 |
11305-20 | 0.1 - 0.2 | 60 | 0.35 | 20 +/- 1.00 | 18 |
| 21 |
1M710S | 3.3 - 3.7 | 22 | 0.25 | 10.5 +/- 0.80 | 20 |
| 20.8 |
1M810S | 43957 | 15 | 0.3 | 10 +/- 0.75 | 18 |
| 17 |
1P510S | 1.7 - 2 | 20 | 0.25 | 10 +/- 0.75 | 20 |
| 20.1 |
1P520S | 1.7 - 2 | 25 | 0.25 | 20 +/- 0.75 | 20 |
| 20.1 |
1P610S | 2.3 - 2.7 | 20 | 0.25 | 10 +/- 0.75 | 20 |
| 20.1 |
1P620S | 2.3 - 2.7 | 25 | 0.25 | 20 +/- 0.75 | 20 |
| 20.1 |
DC0405J5010AHF | 0.4 - 0.5 | 2 | 0.3 | 10.5 | 18 |
| 23 |
DC0710J5005AHF | 0.7 - 1 | 2 | 0.4 | 5 | 23 |
| 21 |
DC0710J5010AHF | 0.7 - 1 | 2 | 0.21 | 10.9 | 20.1 |
| 17.5 |
DC0710J5020AHF | 0.7 - 1 | 2 | 0.22 | 19.5 | 19.7 |
| 21.41 |
DC1417J5005AHF | 1.4 - 1.7 | 2 | 0.55 | 5.5 | 20 |
| 20 |
DC1722J5005AHF | 1.7 - 2.2 | 5 | 0.3 | 5.2 | 20.2 |
| 20.6 |
DC1722J5010AHF | 1.7 - 2.2 | 2 | 0.16 | 10.8 | 16.6 |
| 19.4 |
DC1722J5015AHF | 1.7 - 2.2 | 2 | 0.29 | 15.2 | 19.5 |
| 17.6 |
DC1722J5020AHF | 1.7 - 2.2 | 2 | 0.17 | 19.9 | 21.4 |
| 22.5 |
DC2327J5005AHF | 2.3 - 2.7 | 2 | 0.3 | 4.5 | 24 |
| 16 |
DC2337J5010AHF | 2.3 - 3.7 | 2 | 0.21 | 10.8 | 21.1 |
| 22.8 |
DC2337J5020AHF | 2.3 - 3.7 | 2 | 0.14 | 21.3 | 14.9 |
| 21.2 |
DC3338J5005AHF | 3.3 - 3.8 | 2 | 0.5 | 5.5 | 17 |
| 16.5 |
DC4759J5020AHF | 4.7 - 5.9 | 2 | 0.17 | 19.7 | 10.3 |
| 7.6 |
DC4859J5005AHF | 4.7 - 5.9 | 5 | 0.3 | 4.9 | 19 |
| 19.5 |
JP506S | 2 - 2.3 | 20 | 0.3 | 6 +/- 0.50 | 20 |
| 20.1 |
JP510S | 2 - 2.3 | 20 | 0.25 | 10 +/- 0.75 | 20 |
| 20.1 |
JP520S | 2 - 2.3 | 25 | 0.25 | 20 +/- 0.75 | 20 |
| 20.1 |
X3C07F1-02S | 0.69 - 1 | 25 | 0.2 | 1.9 +/- 0.15 | 21 |
| 23 |
X3C07F1-05S | 0.6 - 1 | 25 | 0.2 | 5.2 | 20 |
| 20.07 |
X3C07P1-04S | 0.6 - 0.9 | 70 | 0.19 | 4 +/- 0.25 | 25 |
| 25 |
X3C09E2-20S | 0.8 - 1 | 225 | 0.05 | 20 +/- 0.6 | 23 |
| 20.079 |
X3C09F1-20S | 0.7 - 1 | 25 | 0.05 | 20 +/- 0.5 | 25 |
| 25 |
X3C09P1-04S | 0.8 - 1 | 70 | 0.2 | 4 +/- 0.3 | 23 |
| 23 |
X3C09P1-05S | 0.8 - 1 | 70 | 0.2 | 5 +/- 0.3 | 23 |
| 23 |
X3C09P2-30S | 0.8 - 1 | 225 | 0.075 | 30 +/- 1.5 | 20 |
| 24.9 |
X3C19E2-20S | 1.4 - 2.7 | 225 | 0.05 | 20 +/- 0.6 | 25 |
| 24.9 |
X3C19F1-20S | 1.7 - 2.2 | 25 | 0.05 | 20 +/- 0.5 | 25 |
| 25 |
X3C19P1-04S | 1.7 - 2 | 70 | 0.14 | 4 +/- 0.2 | 23 |
| 23 |
X3C19P1-05S | 1.7 - 2 | 70 | 0.13 | 5 +/- 0.2 | 25 |
| 24.9 |
X3C19P2-30S | 1.4 - 2.7 | 150 | 0.075 | 30 +/- 1.5 | 20 |
| 24.9 |
X3C20F1-02S | 1.8 - 2.2 | 25 | 0.2 | 1.9 +/- 0.20 | 21 |
| 23 |
X3C21P1-04S | 2 - 2.3 | 60 | 0.13 | 4 +/- 0.2 | 25 |
| 25 |
X3C21P1-05S | 2 - 2.3 | 60 | 0.13 | 5 +/ -0.2 | 25 |
| 24.9 |
X3C25F1-02S | 2.3 - 2.7 | 20 | 0.2 | 1.9 +/- 0.15 | 21 |
| 23 |
X3C25F1-04S | 2.3 - 2.7 | 25 | 0.2 | 4.0 +/- 0.3 | 19 |
| 23.12 |
X3C25P1-02S | 2.3 - 2.7 | 70 | 0.18 | 1.9 +/- 0.15 | 23 |
| 23.1 |
X3C25P1-04S | 2.3 - 2.7 | 60 | 0.17 | 4 +/- 0.2 | 23 |
| 23 |
X3C25P1-05S | 2.3 - 2.4 | 70 | 0.14 | 5 +/- 0.2 | 23 |
| 23.1 |
X3C26P1-30S | 2.3 - 2.9 | 120 | 0.05 | 30 +/- 0.8 | 22 |
| 24.9 |
X3C30F1-20S | 2.3 - 3.8 | 25 | 0.075 | 20 +/- 1.50 | 20 |
| 1.22 |
X3C35F1-02S | 3.3 - 3.8 | 15 | 0.25 | 1.9 +/- 0.15 | 21 |
| 23 |
X3C35F1-04S | 3.3 - 3.8 | 25 | 0.2 | 4.0 +/- 0.15 | 20 |
| 23.1 |
X3C70F1-20S | 5.5 - 8.5 | 20 | 0.25 | 20 +/- 1.5 | 18 |
| 20 |
X4C09F1-30S | 0.46 - 1 | 100 | 0.15 | 32 +/- 1.5 | 20 |
| 23 |
X4C20F1-30S | 1.4 - 2.7 | 100 | 0.1 | 30 +/- 1.5 | 20 |
| 20 |
X4C20J1-02G | 1.7 - 2.3 | 5 | 0.5 | 2.0 +/- 0.5 | -- | 22 | 20 |
X4C20J1-04G | 1.7 - 2.3 | 5 | 0.5 | 4.0 +/- 0.5 | -- | 24 | 20 |
X4C20J1-05G | 1.7 - 2.3 | 5 | 0.5 | 5.0 +/- 0.5 | -- | 25 | 20 |
X4C20J1-20G | 1.4 - 2.7 | 10 | 0.14 | 21 +/- 1.5 | 18 | -- | 18 |
X4C20K1-02S | 1.7 - 2.3 | 10 | 0.25 | 1.9 +/- 0.3 | -- | 23 | 20.83 |
X4C20K1-20S | 1.4 - 2.5 | 25 | 0.1 | 20 +/- 1.0 | 20 |
| 20.1 |
X4C25J1-05G | 1.7 - 2.3 | 5 | 0.5 | 5.0 +/- 0.5 | -- | 25 | 20 |
X4C25K1-02S | 2.2 - 2.8 | 10 | 0.25 | 1.9 +/- 0.2 | -- | 23 | 23 |
X4C25K1-05S | 2.2 - 2.8 | 10 | 0.25 | 4.9 +/- 0.35 | -- | 23 | 23 |
X4C30F1-30S | 2.3 - 3.8 | 100 | 0.075 | 30 +/- 1.5 | 20 |
| 20 |
X4C30J1-20G | 2.2 - 3.3 | 10 | 0.12 | 20 +/- 1.0 | 20 | -- | 20 |
X4C30K1-02S | 2.5 - 3.8 | 10 | 0.2 | 1.90 +/- 0.2 | -- | 23 | 23 |
X4C30K1-05S | 2.5 - 3.8 | 10 | 0.2 | 4.8 +/- 0.3 | -- | 23 | 23 |
X4C30K1-20S | 2.2 - 3.3 | 25 | 0.1 | 20 +/- 1.0 | 20 |
| 20.1 |
X4C35J1-04G | 3.1 - 4.2 | 5 | 0.5 | 4.0 +/- 0.5 | -- | 24 | 20 |
X4C35J1-05G | 3.1 - 4.2 | 5 | 0.5 | 5.0 +/- 0.8 | -- | 25 | 20 |
X4C40J1-20G | 3.3 - 5.0 | 10 | 0.1 | 20 +/- 1.5 | 18 | -- | 18 |
X4C40K1-20S | 3.3 - 5.1 | 25 | 0.07 | 20 +/- 1.0 | 20 |
| 20.1 |
X4C45J1-02G | 3.6 - 5.1 | 5 | 0.5 | 2.0 +/- 0.5 | -- | 22 | 20 |
X4C45J1-04G | 3.6 - 5.1 | 5 | 0.5 | 5.0 +/- 0.5 | -- | 24 | 20 |
X4C45J1-05G | 3.6 - 5.1 | 5 | 0.5 | 5.0 +/- 0.7 | -- | 25 | 20 |
X4C45K1-04S | 3.6 - 5.1 | 10 | 0.2 | 3.9 +/- 0.4 | -- | 23 | 23 |
X4C45K1-05S | 3.6 - 5.1 | 10 | 0.2 | 4.9 +/- 0.4 | -- | 23 | 23 |
X4C55J1-02G | 5.0 - 6.3 | 5 | 0.5 | 2.0 +/- 0.5 | -- | 22 | 20 |
X4C55J1-04G | 5.0 - 6.3 | 5 | 0.5 | 4.0 +/- 0.5 | -- | 24 | 20 |
X4C55J1-05G | 5.0 - 6.3 | 5 | 0.5 | 5.0 +/- 0.5 | -- | 25 | 20 |
X4C60J1-20G | 4.4 - 6.3 | 8 | 0.15 | 20 +/- 1.5 | 18 | -- | 18 |
X4C60K1-20S | 4.4 - 6.5 | 25 | 0.1 | 20 +/- 1.0 | 20 |
| 20.1 |
XC0450E-20S | 0.46 - 0.47 | 100 | 0.3 | 20.1 +/- 1.50 | 17 |
| 20.1 |
XC0900A-05S | 0.8 - 1 | 250 | 0.15 | 5 +/- 0.35 | 23 |
| 24.9 |
XC0900A-10S | 0.8 - 1 | 250 | 0.14 | 10.1 +/- 0.60 | 25 |
| 24.9 |
XC0900A-20S | 0.8 - 1 | 150 | 0.14 | 20.1 +/- 0.60 | 25 |
| 24.9 |
XC0900P-10S | 0.8 - 1 | 55 | 0.28 | 10.2 +/- 1.00 | 14 |
| 15 |
XC1500A-20S | 43832 | 160 | 0.19 | 20 +/- 0.70 | 21 |
| 18.2 |
XC1900A-05S | 1.7 - 2 | 200 | 0.12 | 5 +/- 0.22 | 25 |
| 24.9 |
XC1900A-10S | 1.7 - 2 | 175 | 0.14 | 10.1 +/- 0.50 | 25 |
| 24.9 |
XC1900A-20S | 1.7 - 2 | 150 | 0.12 | 20.1 +/- 0.60 | 25 |
| 24.9 |
XC2100A-05S | 2 - 2.3 | 125 | 0.12 | 5 +/- 0.22 | 25 |
| 24.9 |
XC2100A-10S | 2 - 2.3 | 175 | 0.14 | 10.1 +/- 0.50 | 25 |
| 24.9 |
XC2100A-20S | 2 - 2.3 | 150 | 0.12 | 20.1 +/- 0.60 | 25 |
| 24.9 |
XC2100A-30S | 2 - 2.3 | 120 | 0.12 | 30 +/- 0.60 | 22 |
| 22.1 |
XC2100E-10S | 2 - 2.3 | 165 | 0.12 | 10.1 +/- 0.50 | 23 |
| 23.1 |
XC2500E-10S | 2.3 - 2.7 | 145 | 0.14 | 10 +/- 0.50 | 21 |
| 21.2 |
XC2500P-20S | 2.3 - 2.7 | 50 | 0.2 | 20 +/- 1.00 | 20 |
| 20.8 |
XC3500M-20S | 3.3 - 3.8 | 80 | 0.2 | 20 +/- 1.00 | 21 |
| 20.8 |
XEC24P3-30G | 2.4 - 2.5 | 300 | 0.1 | 30 +/- 1.00 | 20 |
| 23 |
