Q20HE-1090R定向耦合器
Q20HE-1090R定向耦合器
首要因素

Q20HE-1090R定向招生合體器速率：0.96 – 1.22 GHz交叉耦合：20聲音頻率±1聲音頻率解耦非常平整度：±0.5dB目標性：20聲貝駐波比：1.2:1導入損耗率：0.15dB電率：400瓦估評板722-0006-05-E01訂購壽命：6-8周

品牌：Electro-Photonics

好產品內容詳細介紹

960-1220 MHz Directional Coupler

The Q20HE-1090R is a broadband, bi-directional coupler with high directivity and high power handling. It is suitable for LTE mobile broadband, UHF television, GSM, and more…

Specifications

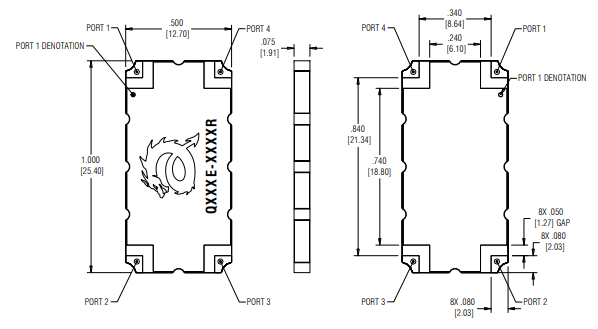

  • Size: 1.00 x 0.50 inches
  • Frequency: 0.96 – 1.22 GHz
  • Coupling: 20 dB ± 1 dB
  • Coupling Flatness: ± 0.5 dB
  • Directivity: 20 dB
  • VSWR: 1.2:1
  • Insertion Loss: 0.15 dB
  • Power: 400 W
  • Evaluation board 722-0006-05-E01
