Q3XG-3000R?寬帶混合耦合器

比較重要參數指標

Q3XG-3000R寬帶混合耦合器

速度：2000-4000兆赫功效：50瓦添加消耗的資金：0.22 dB屏蔽度：2四分貝駐波比：1.18定購時間是：6-8周

品牌：Electro-Photonics

產品詳情介紹介紹

Features

2000 – 4000 MHz
Low Loss
High Isolation
Tight Amplitude Balance
90 deg Quadrature
Surface Mountable
CTE Matched
MMDS, WLAN, WiMax, WiBro, WiFi, ISM, LTE Band
Tape and Reel Option

Specifications

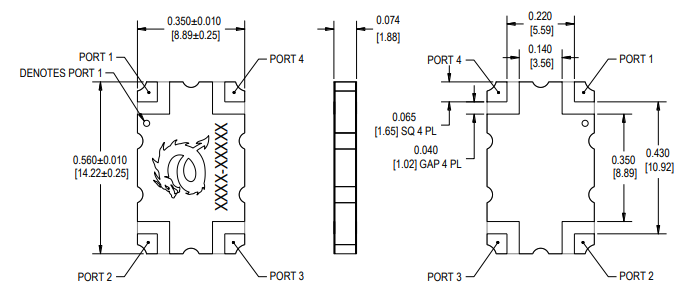

Size: .560 x .350 inches
Frequency: 2000-4000 MHz
Power: 50 W
Insertion Loss: .22 dB
Amplitude Balance: ± .55
Isolation: 24 dB
VSWR: 1.18
Phase Balance: ± 3
