Q3XG-900R 寬帶混合耦合器

主要基本參數

Q3XG-900R 光纖寬帶融合解耦器幾率：800-1000兆赫工作效率：175瓦導入消耗：0.12 dB底部隔離度：24分貝駐波比：1.15進貨過渡期：6-8周

品牌：Electro-Photonics

食品詳情頁解紹

Features

800 – 1000 MHz
Low Loss
High Isolation
Tight Amplitude Balance
90 deg Quadrature
Surface Mountable
CTE Matched
AMPS, GSM, WCDMA, LTE Band
Tape and Reel Option

Specifications

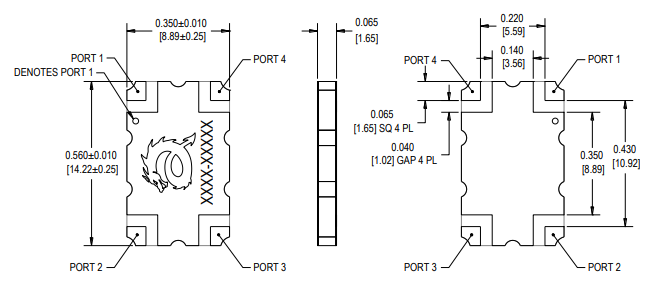

Size: .560 x .350 inches
Frequency: 800-1000 MHz
Power: 175 W
Insertion Loss: .12 dB
Amplitude Balance: ± .2
Isolation: 25 dB
VSWR: 1.15
Phase Balance: ± 2
