Frequency Range, MHz

60 MHz

80 MHz

Noise Figure

1.5 dB

2.0 dB

P-1dB Compression Point

13 dBm

15.0 dBm

Nominal Gain@Room Temp

30.0dB

33.0 dB

36.0 dB

Gain flatness

+/-0.25 dB

+/-0. 5 dB

Gain Variation over Temp

+/-0.5dB

Input VSWR

1.25:1

1.35:1

Output VSWR

1.35:1

1.5:1

Reverse Isolation

55 dB

Spurious

-60 dBc

Operating Temperature

 0°C

+50°C

Survival Temperature

-55°C

+125°C

DC Power Supply Voltage

+24V*

DC Power Supply Current

100mA

120 mA

140mA

In/Out connectors

50 ohm BNC female

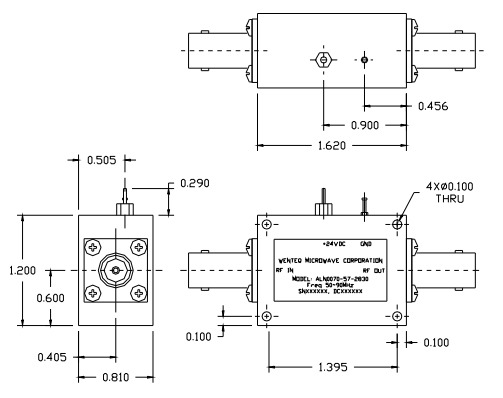

Size

1.62”x1.2”x0.81”
