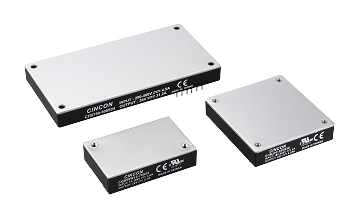

?CINCON磚式 DC-DC 變換器

推出用時：2022-12-09 16:43:11 瀏覽網頁：841

CINCON是臨床經驗多樣的DC/DC轉變器打造中間商，CINCON的DC-DC運用磚式電源線和互轉器，具備基準要求的四分之五、半磚和全磚長度。CINCON的DC/DC磚設有在印上配電線路板上，享有錄入電流值空間廣、隔絕個人防護、效果電流值動態平衡性、率更加高、保證全東南方向等特質。

四分其一的磚尺碼，CINCON有50W到150W最率相對密度極限，進入范疇大總寬12:1。半磚圖片尺寸，CINCON有50W到350W最率強度是最高的，輸人位置最明顯屏幕寬度匹配12:1。全磚長度，CINCON有400W到800W最率體積最多，發送條件上限間距4:1。

CINCON不單單保證規范DC-DC磚式變為器還提供了了即插即用DC-DC轉變成器傳感器，CMFC/CMFD系列產品產品，鑲入EMI搞定實施方案，關心大家進行處理不輕松愉快的前提EMC相關問題。CINCON只為才能減少投資者的研究開發時，出具中應的選用講述比做指引專用工具。

廣州市立維創展科學是CINCON電源適配器版塊的代經售商，供給CINCON供電控制器的DC-DC轉為器、AC-DC電源開關、LED電源模塊等，食品原廠進口報關，質量管理后勤保障，比較有價位競爭優勢，感謝咨詢服務

寶貝詳情掌握CINCON電原請打開網頁：//www.takasago.net.cn/article/2177.html

12:1 Input Range

Model	Power	Input Voltage	Output Voltage	Features	Dimensions (Inch)
CQB50W12	50W	14~160V	5V, 12V, 24V, 48V	3KVdc Isolation UL62368-1 & CB EN45545-2 EN50155 Compliant	2.28×1.45x0.50 (Quarter Brick)
CHB150W12	150W	14~160V	5V, 12V, 15V, 24V, 48V	3KVac Isolation UL62368-1 & CB EN45545-2 EN50155 Compliant	2.28×2.40x0.50 (Half Brick)
CHB200W12	200W	14~160V	12V, 15V, 24V, 48V	3KVac Isolation UL62368-1 & CB EN45545-2 EN50155 Compliant	2.28×2.40x0.50 (Half Brick)

8:1 Input Range

Model	Power	Input Voltage	Output Voltage	Features	Dimensions (Inch)
CQB50W8	50W	9~75V	12V, 15V, 24V, 28V, 48V	3KVac Isolation UL62368 & CB EN45545-2 EN50155 Compliant	2.28×1.45x0.50 (Quarter Brick)
CQB75W8	75W	9~75V	12V, 15V, 24V, 28V, 48V	3KVac Isolation UL62368 & CB EN45545-2 EN50155 Compliant	2.28×1.45x0.50 (Quarter Brick)
CHB150W8	150W	9~75V	12V, 15V, 24V, 28V, 48V	1.5KVDC Isolation UL60950-1	2.28×2.40x0.50 (Half Brick)

4:1 Input Range

Model	Power	Input Voltage	Output Voltage	Features	Dimensions (Inch)
CQE50W	50W	18~75V, 9~36V	12V, 15V, 24V, 3.3V, 48V, 5V	1.5KVDC Isolation UL60950-1	2.28×1.45x0.50 (Quarter Brick)
CHB50W	50W	18~75V, 9~36V	12V, 15V, 24V, 28V, 3.3V, 48V, 5V	1.5KVDC Isolation UL60950-1	2.28×2.40x0.50 (Half Brick)
CQB60W-110S	60W	43~160V	12V, 15V, 24V, 28V, 48V, 5V	3KVdc Isolation UL60950-1 EN45545-2 EN50155 Compliant	2.28×1.45x0.50 (Quarter Brick)
CQB75W	75W	18~75V, 9~36V	12V, 15V, 24V, 3.3V, 5V	1.5KVDC Isolation UL60950-1	2.28×1.45x0.50 (Quarter Brick)
CHB75W	75W	18~75V, 9~36V	12V, 15V, 24V, 28V, 3.3V, 48V, 5V	1.5KVDC Isolation UL60950-1	2.28×2.40x0.50 (Half Brick)
CQB100W	100W	18~75V, 9~36V	12V, 15V, 24V, 3.3V, 5V	1.5KVDC Isolation UL60950-1	2.28×1.45x0.50 (Quarter Brick)
CQB100W-110S	100W	43~160V	12V, 15V, 24V, 28V, 48V, 5V	3KVdc Isolation UL60950-1 & CB EN45545-2 EN50155 Compliant	2.28×1.45x0.50 (Quarter Brick)
CHB100W	100W	18~75V, 9~36V	12V, 15V, 24V, 28V, 3.3V, 48V, 5V	1.5KVDC Isolation UL60950-1	2.28×2.40x0.50 (Half Brick)
CHE100W	100W	18~75V, 9~36V	12V, 15V, 24V, 3.3V, 48V, 5V	1.5KVDC Isolation	2.28×2.40x0.50 (Half Brick)
CQB150W	150W	18~75V, 9~36V	12V, 15V, 24V, 28V, 48V, 5V	2250Vdc Isolation UL62368-1 & CB EN45545-2 EN50155 Compliant	2.28×1.45x0.50 (Quarter Brick)
CQB150W-110S	150W	43~160V	3.3V, 5V, 12V, 15V, 24V, 28V, 48V	3KVdc Isolation UL60950-1 & CB EN45545-2 EN50155 Compliant	2.28×1.45x0.50 (Quarter Brick)
CHB150W	150W	18~75V, 9~36V	12V, 15V, 24V, 28V, 3.3V, 48V, 5V	1.5KVDC Isolation UL60950-1	2.28×2.40x0.52 (Half Brick)
CHB200W	200W	10~36V, 18~75V	12V, 15V, 24V, 28V, 3.3V, 48V, 5V	1.5KVDC Isolation UL60950-1	2.28×2.40x0.52 (Half Brick)
CHB200W-110S	200W	43~160V	5V, 12V, 24V, 28V, 48V	3KVdc Isolation UL60950-1 EN45545-2 EN50155 Compliant	2.28×2.40x0.50 (Half Brick)
CHB300W	300W	18~75V, 9~36V	12V, 15V, 24V, 28V, 48V, 5V	1.5KVDC Isolation UL62368-1	2.28×2.40x0.50 (Half Brick)
CHB300W-110S	300W	43~160V	12V, 24V, 28V, 3.3V, 48V, 5V	3KVdc Isolation UL60950-1 & CB EN45545-2 EN50155 Compliant	2.28×2.40x0.50 (Half Brick)
CFB400W	400W	18~75V, 9~36V	12V, 24V, 28V, 48V, 5V	1.5KVDC Isolation UL60950-1	4.60×2.40x0.50 (Full Brick)
CFB600W-110S	600W	43~160VDC	12V, 24V, 28V, 48V	2250Vdc Isolation UL60950-1 EN45545-2 EN50155 Compliant	4.60×2.40x0.50 (Full Brick)

2:1 Input Range

Model	Power	Input Voltage	Output Voltage	Features	Dimensions (Inch)
CHB50	50W	18~36V, 36~75V, 9~18V	12V, 15V, 24V, 3.3V, 5V	1.5KVDC Isolation UL60950-1	2.28×2.40x0.50 (Half Brick)
CQB75-300S	75W	180~450V	12V, 15V, 24V, 3.3V, 48V, 5V	3KVAC Isolation UL62368-1 & CB	2.28×1.45x0.50 (Quarter Brick)
CHB75	75W	18~36V, 36~75V, 9~18V	12V, 15V, 24V, 3.3V, 5V	1.5KVDC Isolation UL60950-1	2.28×2.40x0.50 (Half Brick)
CQB100-110S	100W	66~160V	12V, 24V, 3.3V, 5V	2250Vdc Isolation UL60950-1 EN45545-2 EN50155 Compliant	2.28×1.45x0.50 (Quarter Brick)
CHB100	100W	18~36V, 36~75V	12V, 15V, 24V, 3.3V, 5V	1.5KVDC Isolation UL60950-1	2.28×2.40x0.50 (Half Brick)
CHB100-110S	100W	66~160V	12V, 15V, 24V, 48V	3KVac Isolation EN45545-2 EN50155 Compliant	2.28×2.40x0.50 (Half Brick)
CQB150-300S	150W	180~425V	12V, 15V, 24V, 28V, 48V, 5V	3KVAC Isolation UL62368-1 & CB	2.28×1.45x0.50 (Quarter Brick)
CHB150	150W	36~75V	12V, 15V, 24V, 3.3V, 5V	1.5KVDC Isolation UL60950-1	2.28×2.40x0.50 (Half Brick)
CHB150-110S	150W	66~160V	12V, 24V, 5V	2250Vdc Isolation UL60950-1 EN45545-2 EN50155 Compliant	2.28×2.40x0.50 (Half Brick)
CQB200	200W	18~36V	24V, 28V	2250Vdc Isolation UL62368-1 EN45545-2	2.28×1.45x0.50 (Quarter Brick)
CHB300-300S	300W	180~425V	12V, 24V, 28V, 48V, 5V	3KVAC Isolation UL60950-1 & CB	2.28×2.40x0.50 (Half Brick)
CHB350	350W	18~36V, 36~75V	12V, 24V, 28V, 3.3V, 48V, 5V	1.5KVDC Isolation UL60950-1	2.28×2.40x0.50 2.28×2.40x0.52 (Half Brick)
CFB600	600W	18~36V, 36~75V	12V, 24V, 28V, 32V, 48V	1.5KVDC Isolation UL62368-1	4.60×2.40x0.50 (Full Brick)
CFB600-300S	600W	180~425V	12V, 24V, 48V	3KVAC Isolation UL60950-1	4.60×2.40x0.50 (Full Brick)
CFB750-300S	750W	200~425V	12V, 15V, 24V, 28V, 36V, 48V	3KVAC Isolation	4.60×2.40x0.50 (Full Brick)
CFB800	800W	18~36V	28V	1.5KVDC Isolation	4.60×2.40x0.50 (Full Brick)
