?Mi-Wave波導到同軸支持器

分享準確時間：2022-11-01 16:43:40     查詢：881

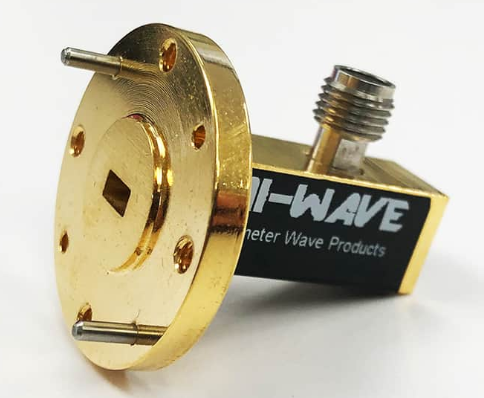

Mi-Wave的410產品波導到同軸自適應器要能能夠的從等邊三角形波導用于同軸接觸器。全波導速率從8.2到110GHz。低添加材料耗費和駐波比是這點波導同軸兼容器主要表現的性。成本更低費的生產板本才能否讓設配和車輛廠應運。研究室水平也能否為任何型號。Mi-Wave的同軸到波導適應器具備數據通訊儀器的訴求，是當下市售上不適用的更好的波導轉化成適應器的一種。

功能

打造成本分析費安卓版本

頻率的范圍 8.2 至 110 GHz

帶來了多個同軸無線接插件

進行工業選用的高能版。

Mi-Wave是商用廚房型和軍民融合用mm波設備歐洲引領者，能否保證mm波器材和控制模塊很好解決措施。設備線內容涵蓋：圖像放大器電路、混頻器、衰減器、濾波器、電開關、T/R、同軸電纜、反射強度鏡等，所涉及到工作頻率超過320GHz.

杭州市立維創展科技產業有限的公司品牌授權一級代理產品Mi-Wave厘米波的產品，歡迎辭資詢。

商品詳情清楚Mi-Wave請點擊率：//www.takasago.net.cn/brand/52.html


Model

Band

Frequency (GHz)

Insertion Loss (dB)

Return Loss (dB)

Power Handling (W)

Waveguide Port

Coaxial Port

410X/39/NF

X-Band

8.2-12.4

0.4

16

400

WR-90 Waveguide, UG-39/U Flange

NF- Female connector

410X/39/SMAF

X-Band

8.2-12.4

0.4

17

150

WR-90 Waveguide, UG-39/U Flange

SMA- Female connector

410X/39/SMAM

X-Band

8.2-12.4

0.4

16

150

WR-90 Waveguide, UG-39/U Flange

SMA-Male connector

410(51)/UBR180/CKF

WR-51

15-12

0.3

20

10

WR-51 Waveguide, UBR180 Flange w "O" Ring

CK-Female connector

410(34)/596/KF

WR-34

22-33

0.4

20

10

WR-34 Waveguide, UG-596 Flange w "O" Ring

K-Female connector

410(34)/595/KF

WR-34

22-33

0.4

17

10

WR-34 Waveguide, UG-596 Flange w "O" Ring

K-Female connector

410(34)/595/3.5mmF

WR-35

22-33

0.4

20

10

WR-34 Waveguide, UG-596 Flange w "O" Ring

3.5 mm Female Connector

410(75)/SMAF

WR-75

10-15

0.3

20

150

WR-75 Waveguide

SMA Female

410Ku/419/SMAF

Ku-Band

12.4-18

0.3

20

150

WR-62 Waveguide, UG-419 Flange

SMA Female

410K/595/SMAF

K-Band

18-26.5

0.4

20

150

WR-42 Waveguide with UG-595/U Flange

SMA-Female

410K/595/KF

K-Band

18-26.5

0.4

20

10

WR-42 Waveguide, UG-595/U Flange

K-Female connector

410A/599/KF

Ka-Band

26.5-40

0.4

20

10

WR-28 Waveguide, UG-599/U Flange

K-Female connector

410A/599/KM

Ka-Band

26.5-40

0.4

20

10

WR-28 Waveguide, UG-599/U Flange

K-Male connector

410B/383/KF

Q-Band

33-40

0.5

20

10

WR-22 Waveguide with UG-383/U Flange

K-Female connector

410B/383/KM

Q-Band

33-40

0.4

20

10

WR-22 Waveguide with UG-383/U Flange

2.92mm (K) Male connector

410B/383/2.4mmF

Q-Band

33-50

0.4

20

10

WR-22 Waveguide, UG-383/U Flange

2.4 mm Female Connector

410B/383/2.4mmM

Q-Band

33-50

0.4

20

10

WR-22 Waveguide, UG-383/U Flange

2.4 mm Male Connector

410U/383/1.85mmF

U-Band

40-60

0.5

17

10

WR-19 Waveguide with UG-383/U-M Flange

1.85 mm Female connector

410U/383/1.85mmM

U-Band

40-60

0.5

17

10

WR-19 Waveguide with UG-383/U-M Flange

1.85 mm Male Connector

410V/385/1.85mmF

V-Band

50-67

0.5

17

10

WR-15 Waveguide With UG-385/U Flange

1.85 mm Female connector

410V/385/1.85mmM

V-Band

50-67

0.5

17

10

WR-15 Waveguide with UG-385/U Flange

1.85 mm Male connector

410V/385/1.85mmF

V-Band

50-67

0.5

17

10

WR-15 Waveguide with UG-385/U Flange

1.85 mm Female connector

410V/385/1.00mmF

V-Band

50-67

0.5

15

10

WR-15 Waveguide with UG-385/U Flange

1.00 mm Female connector

410E/387/1.00mmM

E-Band

60-90

1

15

10

WR-12 Waveguide, UG-387/U Flange

1.85 mm Male connector

410E/387/1.00mmF

E-Band

60-90

1

15

10

WR-12 Waveguide, UG-387/U Flange

1.00 mm Female connector

410W/387/1.00mmM

W-Band

75-110

1.2

15

10

WR-10 Waveguide, UG-387/U-M Flange

1.00 mm Male connector

410W/387/1.00mmF

W-Band

75-110

1.2

15

10

WR-10 Waveguide, UG-387/U-M Flange

1.00 mm Female connector
