WENTEQ非常低噪聲源變成器
更新日子：2022-02-22 17:33:06 打開網頁：1616
低噪聲放大器是低噪聲系數的放大器，通常用來作為各種無線電通信接收機的高頻率或中頻率前置放大器，及其高靈敏度電子器件測試儀器的放大電路。

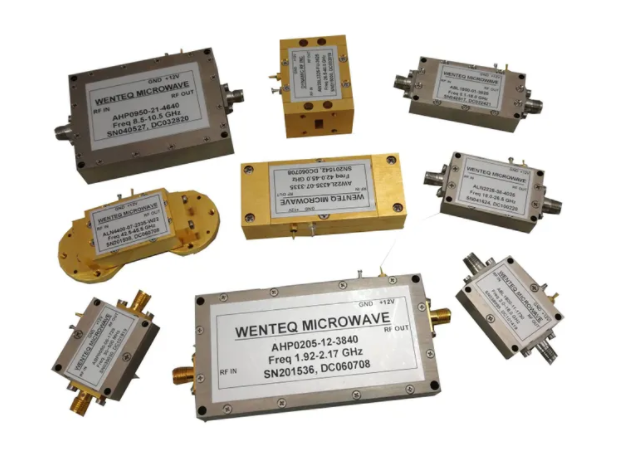

WENTEQ較低躁聲放縮器是規定要求超低的app中超有成本費作用的消除方案格式躁聲放縮。以下的所述的規格為在常溫畢竟。WENTEQ幫助大家向我們都的能提供了用戶的重要規定要，要怎樣我們都的可能提供了大家需要的要的放小器。
企業產品作用：
產品遮蓋的運轉平率的范圍為100MHz至50GHz；
極低的噪音、高收獲、的噪音指數低至0.5dB，收獲敢達50dB；
事業溫濕度標準-40~+85°C；
身材比例小、代價低；
SMA母頭I/O或插件怎么安裝相連接；
WENTEQ以較低環境噪聲網絡帶寬徽波放小器商品為上海特色，并展示 弧形器、丟開器、額定負載數據終端等商品，WENTEQ貨品以高返修率，獲得了中國股票市場的認可的，一家老字號的紅外光射頻紅外光制造業企業，WENTEQ以高穩定可靠的類產品性能指標，日前獲取每項澳大利亞與澳洲航空航空航空、國防安全輕工業項目流程。
長沙市立維創展科技創新是WENTEQ的代理商商，其主要保證WENTEQ物品例如環型器、分隔器、載荷POS機等，物品原版進口，重量做到，到貨準確時間，價格多少主要優勢，歡迎圖片諮詢。
詳細情況了解一下WENTEQ請點擊：//www.takasago.net.cn/brand/29.html
仿真模型 | 率(GHz) | 嗓聲公式，先進典型值 (dB) | 輸出功率增益控制，（dBm） | 增加收益非常平整度，(dB) | 進入/傳輸交流電壓駐波比 | 輸送P1dB電率，(dBm) | 直流電工作電壓 (v) | 直流電壓功率 (mA) |
ALN007-29-3315B | 0.06-0.08 | 1.5 | 33 | ±0.25 | 1.35:1/1.5:1 | 15 | +24.0 | 120 |
ALN007-57-2820B | 0.05-0.09 | 2 | 28 | ±0.35 | 1.35:1/1.5:1 | 15 | +24.0 | 120 |
ALN0025-08-5208NW | 0.24-0.26 | 0.8 | 52 | ±0.10 | 1.5:1 | 12 | +24.0 | 150 |
ALN0025-40-3006 | 0.2~0.3 | 0.6 | 30 | ±0.35 | 1.5:1 | 16 | +12.0 | 110 |
ALN0025-40-4006 | 0.2~0.3 | 0.6 | 40 | ±0.50 | 1.5:1 | 16 | +12.0 | 120 |
ALN0035-29-3006 | 0.3~0.4 | 0.6 | 30 | ±0.35 | 1.5:1 | 16 | +12.0 | 110 |
ALN0035-29-4006 | 0.3-0.4 | 0.6 | 40 | ±0.50 | 1.5:1 | 16 | +12.0 | 120 |
ALN0050-40-3006 | 0.4~0.6 | 0.6 | 30 | ±0.35 | 1.5:1 | 16 | +10-+12.0 | 110 |
ALN0050-40-4006 | 0.4~0.6 | 0.6 | 40 | ±0.50 | 1.5:1 | 16 | +10-+12.0 | 120 |
ALN0060-33-3006 | 0.5~0.7 | 0.6 | 30 | ±0.35 | 1.5:1 | 16 | +10-+12.0 | 110 |
ALN0060-33-4006 | 0.5~0.7 | 0.6 | 40 | ±0.50 | 1.5:1 | 16 | +10-+12.0 | 110 |
ALN0090-22-3406 | 0.8-1.0 | 0.6 | 34 | ±0.50 | 1.35:1/1.6:1 | 13 | +10-+12.0 | 60 |
ALN0090-22-4306 | 0.8~1.0 | 0.6 | 43 | ±0.50 | 1.5:1 | 16 | +10-+12.0 | 120 |
ALN0090-22-5006 | 0.8~1.0 | 0.6 | 50 | ±0.5 | 1.5:1 | 16 | +10-+12.0 | 120 |
ALN0120-42-3306 | 0.95~1.45 | 0.6 | 33 | ±0.50 | 1.5:1 | 15 | +10-+12.0 | 100 |
ALN0120-42-4206 | 0.95~1.45 | 0.6 | 42 | ±0.50 | 1.5:1 | 16 | +10-+12.0 | 110 |
ALN0120-42-5006 | 0.95~1.45 | 0.6 | 50 | ±0.50 | 1.5:1 | 16 | +10-+12.0 | 120 |
ALN0131-14-2505F | 1.215-1.40 | 0.5 | 25 | ±0.75 | 1.5:1 | 16 | +10-+12.0 | 120 |
ALN0131-14-3505F | 1.215-1.40 | 0.5 | 35 | ±0.75 | 1.5:1 | 16 | +10-+12.0 | 120 |
ALN0138-40-3208NW | 1.10-1.65 | 0.8 | 35 | ±0.50 | 1.5:1 | 13 | +30.0 | 100 |
ALN0138-40-5307N | 1.10-1.65 | 0.7 | 53 | ±0.50 | 1.5:1 | 13 | +15.0 | 140 |
ALN0140-29-3206 | 1.2~1.6 | 0.6 | 32 | ±1.0 | 1.5 | 16 | +10-+12.0 | 50 |
ALN0140-29-4007 | 1.2~1.6 | 0.7 | 40 | ±0.50 | 1.5:1 | 12 | +10-+12.0 | 100 |
ALN0140-29-5007 | 1.2~1.6 | 0.7 | 50 | ±1.0 | 1.5 | 12 | +10-+12.0 | 100 |
ALN0165-18-4207 | 1.5~1.8 | 0.7 | 42 | ±1.0 | 1.6:1 | 12 | +10-+12.0 | 120 |
ALN0195-11-3007 | 1.7~2.2 | 0.65 | 30 | ±1.0 | 1.7 | 16 | +10-+12.0 | 60 |
ALN0195-11-4007 | 1.7~2.2 | 0.7 | 40 | ±1.0 | 1.6 | 12 | +10-+12.0 | 130 |
ALN0195-11-5007 | 1.7~2.2 | 0.7 | 50 | ±1.25 | 1.8:1 | 12 | +10-+12.0 | 130 |
ALN0230-26-2607 | 2.0~2.6 | 0.7 | 26 | ±1.0 | 2 | 12 | +10-+12.0 | 55 |
ALN0230-26-4007 | 2.0~2.6 | 0.7 | 40 | ±1.0 | 2 | 12 | +10-+12.0 | 95 |
ALN0230-26-4807 | 2.0~2.6 | 0.7 | 48 | ±1.0 | 2.0:1 | 16 | +10-+12.0 | 140 |
ALN0250-40-3216 | 2.0-3.0 | 1.6 | 32 | ±0.5 | 1.5:1/1.5:1 | 11 | +12.0 | 140 |
ALN0252-10-5307N | 2.40-2.64 | 0.65 | 53 | ±0.5 | 1.5:1/1.5:1 | 13 | +24.0 | 120 |
ALN0260-12-3308 | 2.3-2.9 | 0.85 | 33 | ±0.5 | 1.5:1/1.5:1 | 15 | +12.0 | 100 |
ALN0285-18-2308 | 2.6~3.1 | 0.8 | 23 | ±0.75 | 1.6:1 | 15 | +10-+12.0 | 55 |
ALN0285-18-3508 | 2.6~3.1 | 0.8 | 35 | ±0.75 | 1.6:1 | 15 | +10-+12.0 | 130 |
ALN0325-15-2808 | 3.0~3.5 | 0.8 | 28 | ±0.75 | 1.5:1 | 10 | +10-+12.0 | 40 |
ALN0390-15-4007 | 3.6~4.2 | 0.7 | 40 | ±1.0 | 1.5:1/1.5:1 | 10 | +10-+12.0 | 90 |
ALN0410-34-3012 | 3.4~4.8 | 1.2 | 30 | ±1.0 | 1.5 | 10 | +10-+12.0 | 90 |
ALN0425-12-3007 | 4.0~4.5 | 0.7 | 30 | ±0.5 | 1.5:1 | 10 | +10-+12.0 | 100 |
ALN0425-12-4007 | 4.0-4.5 | 0.7 | 40 | ±1.0 | 1.5:1 | 10 | +10-+12.0 | 120 |
ALN0470-13-3612 | 4.4-5.0 | 1.2 | 30 | ±0.75 | 1.5:1 | 10 | +10-+12.0 | 100 |
ALN0545-13-3809 | 5.1-5.8 | 0.8 | 38 | ±0.25 | 1.7:1/2.5:1 | 20 | +8.0 | 270 |
ALN0560-11-2709 | 5.3-5.9 | 0.9 | 27 | ±0.50 | 1.7:1 | 13 | +8-+15.0 | 50 |
ALN0640-24-3013 | 5.8-7.0 | 1.3 | 30 | ±1.0 | 2.0:1 | 13 | +10-+12.0 | 80 |
ALN0695-04-2212 | 6.8-7.1 | 1.2 | 22 | ±1.0 | 2.0:1 | 10 | +10-+12.0 | 50 |
ALN0825-07-3013 | 7.95-8.55 | 1 | 30 | ±1.0 | 2 | 10 | +10-+12.0 | 80 |
ALN0905-12-3010 | 8.5~9.6 | 1 | 30 | ±1.25 | 2 | 10 | +10-+12.0 | 80 |
ALN1000-10-3010 | 9.5~10.5 | 1 | 30 | ±1.0 | 2 | 10 | +10-+12.0 | 80 |
ALN1110-11-3013 | 10.5~11.7 | 1.3 | 30 | ±1.0 | 2 | 10 | +10-+12.0 | 80 |
ALN1260-30-3015 | 10.7~14.5 | 1.5 | 30 | ±1.25 | 2 | 10 | +10-+12.0 | 80 |
ALN1400-07-3225 | 13.5-14.5 | 2.5 | 32 | ±0.35 | 2.0:1 | 15 | +12.0 | 150 |
ALN1400-21-3825 | 12.5-15.5 | 2.5 | 38 | ±1.0 | 2.0:1 | 13 | +12.0 | 140 |
ALN2225-38-4025 | 18.0-26.5 | 2 | 40 | ±1.0 | 1.8:1/1.8:1 | 13 | +10-+15.0 | 180 |
ALN2300-26-3320 | 20.0~26.0 | 2 | 33 | ±1.0 | 2.0:1 | 12 | +10-+15.0 | 160 |
ALN2600-13-3025 | 25.0~27.0 | 2.5 | 30 | ±1.0 | 2 | 10 | +6-+12.0 | 140 |
ALN3000-07-3325 | 29.0-31.0 | 2.5 | 33 | ±0.35 | 2.0:1 | 13 | +12.0 | 130 |
ALN3175-05-3035 | 31.0~32.5 | 3.5 | 30 | ±1.0 | 2.0:1 | 10 |
| 120 |
ALN3325-41-2235 | 26.5~40.0 | 3.5 | 22 | ±1.0 | 1.7:1/1.7:1 | 12 | +8-+15.0 | 125 |
ALN3325-41-3525 | 26.5~40.0 | 2.5 | 35 | ±1.5 | 1.7:1/1.7:1 | 12 | +8-+15.0 | 110 |
AW28L3325-FU-3625 | 26.5~40.0 | 2.5 | 36 | ±1.5 | 1.7:1/1.7:1 | 12 | +8-+15.0 | 125 |
ALN3325-41-4320 | 26.5~40.0 | 2 | 43 | ±1.0 | 1.7:1/1.7:1 | 12 | +10-+15.0 | 110 |
AW28L3325-FU-4320 | 26.5~40.0 | 2 | 43 | ±1.5 | 1.7:1/1.7:1 | 12 | +8-+15.0 | 125 |
ALN3400-12-3230 | 32.0-36.0 | 3 | 32 | ±1.25 | 1.8:1/1.8:1 | 11 | +10.0 | 130 |
ALN3450-09-3530 | 33.0-36.0 | 3 | 35 | ±1.0 | 1.8:1/1.8:1 | 11 | +10.0 | 160 |
ALN3750-13-3335 | 35.0-40.0 | 3.5 | 33 | ±1.5 | 1.7:1/1.7:1 | 14 | +10.0 | 165 |
ALN4000-10-3530 | 38.0-42.0 | 3 | 35 | ±1.5 | 1.8:1/1.8:1 | 13 | +10.0 | 160 |
ALN4250-12-3535 | 40.0-45.0 | 3.5 | 35 | ±1.5 | 2.0:1/2.0:1 | 16 | +12.0 | 250 |
ALN4300-02-2335 | 42.5-43.5 | 3.5 | 23 | ±0.75 | 2.0:1/2.0:1 | 16 | +12.0 | 280 |
