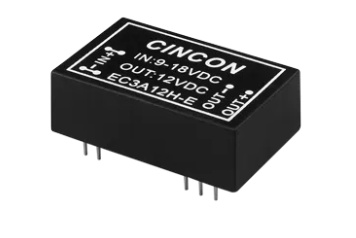

　　CINCON的EC3A-E系列隔離式DC-DC轉換器是一款性能可靠的轉換器，具有以下主要特點：

　　主要特點：

　　3W隔離開工作輸出　　24針DIP封口　　的效率到達78%　　2:1填寫領域　　穩壓輸出的　　都具有Raspberry Pi接頭　　長期虛接保障　　滿足EN55032 Class A標準單位　　無鉭電解電容設計構思　　寬的工作頻率因素范疇：-40°C到+85°C　　按照UL60950-1和IEC/EN/UL62368-1資格認證

　　技術規格：

　　1. 放入相電壓規模：　　5V規格：4.5-5.9V　　12V款式：9-18V　　24V機型：18-36V　　48V型號：36-72V　　2. 轉換電流值和電流值：　　可出具多所在線電壓和電壓電流搭檔，如5V、12V、15V、±5V、±12V、±15V等。　　模擬輸出電流大小區間從100mA到600mA不定，實際上依賴于于有差異的材質。　　3. 效應：給出不一樣的應用，轉為器的效應在72%至87%直接。　　4. 隔開電阻值：　　規則款型：500 VDC　　帶“H”后綴名參數：3000 VDC　　5. 事業上高溫表：大力支持-40°C到+85°C的事業上高溫表，可主要用于情節嚴重的產業環鏡。　　6. 擊穿保護：存在維持的擊穿保護功能模塊，解決辦法的輸出端擊穿引發的環保設備搞壞。　　7. 要進行防護隔離電阻功率：1.5K VDC(標準規范形號)，提高電要進行防護隔離，保證設施健康安全。　　8. 封口：具備標DIP封口和SMD封口，面積小巧玲瓏，于PCB安裝。

　　典型應用：

　　EC3A-E產品系列消毒式DC-DC轉型器可使用于化學工業自然化、通訊網絡設計、測量儀表設備盤、分布點式主機電源設計等各個領域，非常是應該高不靠譜性和寬錄入電壓值范疇的使用場景設計。

　　型號：

Part Number	Input Voltage	Output Voltage	Output Current	No load Input Current	Efficiency (%)	I/O Isolation Voltage	Package
EC3A23S-E	18~36V	15V	0.2A	7.5mA	86	500VDC	SMD24
EC3A27HMS-E	18~36V	3.3V	0.6A	5mA	78	1500VDC	SMD24
EC3A26HMS-E	18~36V	±15V	±0.1A	10mA	86	1500VDC	SMD24
EC3A25HMS-E	18~36V	±12V	±0.125A	10mA	85	1500VDC	SMD24
EC3A24HMS-E	18~36V	±5V	±0.3A	7.5mA	82	1500VDC	SMD24
EC3A23HMS-E	18~36V	15V	0.2A	7.5mA	86	1500VDC	SMD24
EC3A22HMS-E	18~36V	12V	0.25A	7.5mA	86	1500VDC	SMD24
EC3A21HMS-E	18~36V	5V	0.6A	7.5mA	82	1500VDC	SMD24
EC3A21S-E	18~36V	5V	0.6A	7.5mA	82	500VDC	SMD24
EC3A22S-E	18~36V	12V	0.25A	7.5mA	86	500VDC	SMD24
EC3A24S-E	18~36V	±5V	±0.3A	7.5mA	82	500VDC	SMD24
EC3A25S-E	18~36V	±12V	±0.125A	10mA	85	500VDC	SMD24
EC3A26S-E	18~36V	±15V	±0.1A	10mA	86	500VDC	SMD24
EC3A23HS-E	18~36V	15V	0.2A	7.5mA	86	3000VDC	SMD24
EC3A24HS-E	18~36V	±5V	±0.3A	7.5mA	82	3000VDC	SMD24
EC3A25HS-E	18~36V	±12V	±0.125A	10mA	85	3000VDC	SMD24
EC3A26HS-E	18~36V	±15V	±0.1A	10mA	86	3000VDC	SMD24
EC3A27HS-E	18~36V	3.3V	0.6A	5mA	78	3000VDC	SMD24
EC3A22HS-E	18~36V	12V	0.25A	7.5mA	86	3000VDC	SMD24
EC3A27S-E	18~36V	3.3V	0.6A	5mA	78	500VDC	SMD24
EC3A21-E	18~36V	5V	0.6A	7.5mA	82	500VDC	DIP24
EC3A22-E	18~36V	12V	0.25A	7.5mA	86	500VDC	DIP24
EC3A23-E	18~36V	15V	0.2A	7.5mA	86	500VDC	DIP24
EC3A24-E	18~36V	±5V	±0.3A	7.5mA	82	500VDC	DIP24
EC3A25-E	18~36V	±12V	±0.125A	10mA	85	500VDC	DIP24
EC3A26-E	18~36V	±15V	±0.1A	10mA	86	500VDC	DIP24
EC3A27-E	18~36V	3.3V	0.6A	5mA	78	500VDC	DIP24
EC3A21M-E	18~36V	5V	0.6A	7.5mA	82	500VDC	DIP24
EC3A22M-E	18~36V	12V	0.25A	7.5mA	86	500VDC	DIP24
EC3A23M-E	18~36V	15V	0.2A	7.5mA	86	500VDC	DIP24
EC3A24M-E	18~36V	±5V	±0.3A	7.5mA	82	500VDC	DIP24
EC3A25M-E	18~36V	±12V	±0.125A	10mA	85	500VDC	DIP24
EC3A26M-E	18~36V	±15V	±0.1A	10mA	86	500VDC	DIP24
EC3A27M-E	18~36V	3.3V	0.6A	5mA	78	500VDC	DIP24
EC3A21H-E	18~36V	5V	0.6A	7.5mA	82	3000VDC	DIP24
EC3A22H-E	18~36V	12V	0.25A	7.5mA	86	3000VDC	DIP24
EC3A23H-E	18~36V	15V	0.2A	7.5mA	86	3000VDC	DIP24
EC3A24H-E	18~36V	±5V	±0.3A	7.5mA	82	3000VDC	DIP24
EC3A25H-E	18~36V	±12V	±0.125A	10mA	85	3000VDC	DIP24
EC3A26H-E	18~36V	±15V	±0.1A	10mA	86	3000VDC	DIP24
EC3A27H-E	18~36V	3.3V	0.6A	5mA	78	3000VDC	DIP24
EC3A21HM-E	18~36V	5V	0.6A	7.5mA	82	1500VDC	DIP24
EC3A22HM-E	18~36V	12V	0.25A	7.5mA	86	1500VDC	DIP24
EC3A23HM-E	18~36V	15V	0.2A	7.5mA	86	1500VDC	DIP24
EC3A24HM-E	18~36V	±5V	±0.3A	7.5mA	82	1500VDC	DIP24
EC3A25HM-E	18~36V	±12V	±0.125A	10mA	85	1500VDC	DIP24
EC3A26HM-E	18~36V	±15V	±0.1A	10mA	86	1500VDC	DIP24
EC3A27HM-E	18~36V	3.3V	0.6A	5mA	78	1500VDC	DIP24
EC3A21MS-E	18~36V	5V	0.6A	7.5mA	82	500VDC	SMD24
EC3A22MS-E	18~36V	12V	0.25A	7.5mA	86	500VDC	SMD24
EC3A23MS-E	18~36V	15V	0.2A	7.5mA	86	500VDC	SMD24
EC3A24MS-E	18~36V	±5V	±0.3A	7.5mA	82	500VDC	SMD24
EC3A25MS-E	18~36V	±12V	±0.125A	10mA	85	500VDC	SMD24
EC3A26MS-E	18~36V	±15V	±0.1A	10mA	86	500VDC	SMD24
EC3A27MS-E	18~36V	3.3V	0.6A	5mA	78	500VDC	SMD24
EC3A21HS-E	18~36V	5V	0.6A	7.5mA	82	3000VDC	SMD24
EC3A31-E	36~72V	5V	0.6A	3mA	84	500VDC	DIP24
EC3A32-E	36~72V	12V	0.25A	3mA	86	500VDC	DIP24
EC3A33-E	36~72V	15V	0.2A	5mA	86	500VDC	DIP24
EC3A34-E	36~72V	±5V	±0.3A	5mA	85	500VDC	DIP24
EC3A35-E	36~72V	±12V	±0.125A	5mA	87	500VDC	DIP24
EC3A36-E	36~72V	±15V	±0.1A	5mA	87	500VDC	DIP24
EC3A37-E	36~72V	3.3V	0.6A	3mA	79	500VDC	DIP24
EC3A31M-E	36~72V	5V	0.6A	3mA	84	500VDC	DIP24
EC3A32M-E	36~72V	12V	0.25A	3mA	86	500VDC	DIP24
EC3A33M-E	36~72V	15V	0.2A	5mA	86	500VDC	DIP24
EC3A34M-E	36~72V	±5V	±0.3A	5mA	85	500VDC	DIP24
EC3A35M-E	36~72V	±12V	±0.125A	5mA	87	500VDC	DIP24
EC3A36M-E	36~72V	±15V	±0.1A	5mA	87	500VDC	DIP24
EC3A37M-E	36~72V	3.3V	0.6A	3mA	79	500VDC	DIP24
EC3A31H-E	36~72V	5V	0.6A	3mA	84	3000VDC	DIP24
EC3A32H-E	36~72V	12V	0.25A	3mA	86	3000VDC	DIP24
EC3A33H-E	36~72V	15V	0.2A	5mA	86	3000VDC	DIP24
EC3A34H-E	36~72V	±5V	±0.3A	5mA	85	3000VDC	DIP24
EC3A35H-E	36~72V	±12V	±0.125A	5mA	87	3000VDC	DIP24
EC3A36H-E	36~72V	±15V	±0.1A	5mA	87	3000VDC	DIP24
EC3A37H-E	36~72V	3.3V	0.6A	3mA	79	3000VDC	DIP24
EC3A31HM-E	36~72V	5V	0.6A	3mA	84	1500VDC	DIP24
EC3A32HM-E	36~72V	12V	0.25A	3mA	86	1500VDC	DIP24
EC3A33HM-E	36~72V	15V	0.2A	5mA	86	1500VDC	DIP24
EC3A34HM-E	36~72V	±5V	±0.3A	5mA	85	1500VDC	DIP24
EC3A35HM-E	36~72V	±12V	±0.125A	5mA	87	1500VDC	DIP24
EC3A36HM-E	36~72V	±15V	±0.1A	5mA	87	1500VDC	DIP24
EC3A37HM-E	36~72V	3.3V	0.6A	3mA	79	1500VDC	DIP24
EC3A31MS-E	36~72V	5V	0.6A	3mA	84	500VDC	SMD24
EC3A32MS-E	36~72V	12V	0.25A	3mA	86	500VDC	SMD24
EC3A33MS-E	36~72V	15V	0.2A	5mA	86	500VDC	SMD24
EC3A34MS-E	36~72V	±5V	±0.3A	5mA	85	500VDC	SMD24
EC3A35MS-E	36~72V	±12V	±0.125A	5mA	87	500VDC	SMD24
EC3A36MS-E	36~72V	±15V	±0.1A	5mA	87	500VDC	SMD24
EC3A37MS-E	36~72V	3.3V	0.6A	3mA	79	500VDC	SMD24
EC3A34HMS-E	36~72V	±5V	±0.3A	5mA	85	1500VDC	SMD24
EC3A36S-E	36~72V	±15V	±0.1A	5mA	87	500VDC	SMD24
EC3A31HMS-E	36~72V	5V	0.6A	3mA	84	1500VDC	SMD24
EC3A32HMS-E	36~72V	12V	0.25A	3mA	86	1500VDC	SMD24
EC3A33HMS-E	36~72V	15V	0.2A	5mA	86	1500VDC	SMD24
EC3A35HMS-E	36~72V	±12V	±0.125A	5mA	87	1500VDC	SMD24
EC3A36HMS-E	36~72V	±15V	±0.1A	5mA	87	1500VDC	SMD24
EC3A37HMS-E	36~72V	3.3V	0.6A	3mA	79	1500VDC	SMD24
EC3A35S-E	36~72V	±12V	±0.125A	5mA	87	500VDC	SMD24
EC3A34S-E	36~72V	±5V	±0.3A	5mA	85	500VDC	SMD24
EC3A37S-E	36~72V	3.3V	0.6A	3mA	79	500VDC	SMD24
EC3A33S-E	36~72V	15V	0.2A	5mA	86	500VDC	SMD24
EC3A32S-E	36~72V	12V	0.25A	3mA	86	500VDC	SMD24
EC3A31S-E	36~72V	5V	0.6A	3mA	84	500VDC	SMD24
EC3A31HS-E	36~72V	5V	0.6A	3mA	84	3000VDC	SMD24
EC3A32HS-E	36~72V	12V	0.25A	3mA	86	3000VDC	SMD24
EC3A33HS-E	36~72V	15V	0.2A	5mA	86	3000VDC	SMD24
EC3A34HS-E	36~72V	±5V	±0.3A	5mA	85	3000VDC	SMD24
EC3A35HS-E	36~72V	±12V	±0.125A	5mA	87	3000VDC	SMD24
EC3A36HS-E	36~72V	±15V	±0.1A	5mA	87	3000VDC	SMD24
EC3A37HS-E	36~72V	3.3V	0.6A	3mA	79	3000VDC	SMD24
EC3A07HMS-E	4.5~9V	3.3V	0.6A	15mA	72	1500VDC	SMD24
EC3A06HMS-E	4.5~9V	±15V	±0.1A	25mA	80	1500VDC	SMD24
EC3A05HMS-E	4.5~9V	±12V	±0.125A	25mA	80	1500VDC	SMD24
EC3A04HMS-E	4.5~9V	±5V	±0.3A	25mA	77	1500VDC	SMD24
EC3A03HMS-E	4.5~9V	15V	0.2A	15mA	80	1500VDC	SMD24
EC3A02HMS-E	4.5~9V	12V	0.25A	15mA	80	1500VDC	SMD24
EC3A01HMS-E	4.5~9V	5V	0.6A	15mA	77	1500VDC	SMD24
EC3A07S-E	4.5~9V	3.3V	0.6A	15mA	72	500VDC	SMD24
EC3A06S-E	4.5~9V	±15V	±0.1A	25mA	80	500VDC	SMD24
EC3A05S-E	4.5~9V	±12V	±0.125A	25mA	80	500VDC	SMD24
EC3A04S-E	4.5~9V	±5V	±0.3A	25mA	77	500VDC	SMD24
EC3A03S-E	4.5~9V	15V	0.2A	15mA	80	500VDC	SMD24
EC3A02S-E	4.5~9V	12V	0.25A	15mA	80	500VDC	SMD24
EC3A01S-E	4.5~9V	5V	0.6A	15mA	77	500VDC	SMD24
EC3A01-E	4.5~9V	5V	0.6A	15mA	77	500VDC	DIP24
EC3A02-E	4.5~9V	12V	0.25A	15mA	80	500VDC	DIP24
EC3A03-E	4.5~9V	15V	0.2A	15mA	80	500VDC	DIP24
EC3A04-E	4.5~9V	±5V	±0.3A	25mA	77	500VDC	DIP24
EC3A05-E	4.5~9V	±12V	±0.125A	25mA	80	500VDC	DIP24
EC3A06-E	4.5~9V	±15V	±0.1A	25mA	80	500VDC	DIP24
EC3A07-E	4.5~9V	3.3V	0.6A	15mA	72	500VDC	DIP24
EC3A01M-E	4.5~9V	5V	0.6A	15mA	77	500VDC	DIP24
EC3A02M-E	4.5~9V	12V	0.25A	15mA	80	500VDC	DIP24
EC3A03M-E	4.5~9V	15V	0.2A	15mA	80	500VDC	DIP24
EC3A04M-E	4.5~9V	±5V	±0.3A	25mA	77	500VDC	DIP24
EC3A05M-E	4.5~9V	±12V	±0.125A	25mA	80	500VDC	DIP24
EC3A06M-E	4.5~9V	±15V	±0.1A	25mA	80	500VDC	DIP24
EC3A07M-E	4.5~9V	3.3V	0.6A	15mA	72	500VDC	DIP24
EC3A01H-E	4.5~9V	5V	0.6A	15mA	77	3000VDC	DIP24
EC3A02H-E	4.5~9V	12V	0.25A	15mA	80	3000VDC	DIP24
EC3A03H-E	4.5~9V	15V	0.2A	15mA	80	3000VDC	DIP24
EC3A04H-E	4.5~9V	±5V	±0.3A	25mA	77	3000VDC	DIP24
EC3A05H-E	4.5~9V	±12V	±0.125A	25mA	80	3000VDC	DIP24
EC3A06H-E	4.5~9V	±15V	±0.1A	25mA	80	3000VDC	DIP24
EC3A07H-E	4.5~9V	3.3V	0.6A	15mA	72	3000VDC	DIP24
EC3A01HM-E	4.5~9V	5V	0.6A	15mA	77	1500VDC	DIP24
EC3A02HM-E	4.5~9V	12V	0.25A	15mA	80	1500VDC	DIP24
EC3A03HM-E	4.5~9V	15V	0.2A	15mA	80	1500VDC	DIP24
EC3A04HM-E	4.5~9V	±5V	±0.3A	25mA	77	1500VDC	DIP24
EC3A05HM-E	4.5~9V	±12V	±0.125A	25mA	80	1500VDC	DIP24
EC3A06HM-E	4.5~9V	±15V	±0.1A	25mA	80	1500VDC	DIP24
EC3A07HM-E	4.5~9V	3.3V	0.6A	15mA	72	1500VDC	DIP24
EC3A01MS-E	4.5~9V	5V	0.6A	15mA	77	500VDC	SMD24
EC3A02MS-E	4.5~9V	12V	0.25A	15mA	80	500VDC	SMD24
EC3A03MS-E	4.5~9V	15V	0.2A	15mA	80	500VDC	SMD24
EC3A04MS-E	4.5~9V	±5V	±0.3A	25mA	77	500VDC	SMD24
EC3A05MS-E	4.5~9V	±12V	±0.125A	25mA	80	500VDC	SMD24
EC3A06MS-E	4.5~9V	±15V	±0.1A	25mA	80	500VDC	SMD24
EC3A07MS-E	4.5~9V	3.3V	0.6A	15mA	72	500VDC	SMD24
EC3A01HS-E	4.5~9V	5V	0.6A	15mA	77	3000VDC	SMD24
EC3A02HS-E	4.5~9V	12V	0.25A	15mA	80	3000VDC	SMD24
EC3A03HS-E	4.5~9V	15V	0.2A	15mA	80	3000VDC	SMD24
EC3A04HS-E	4.5~9V	±5V	±0.3A	25mA	77	3000VDC	SMD24
EC3A05HS-E	4.5~9V	±12V	±0.125A	25mA	80	3000VDC	SMD24
EC3A06HS-E	4.5~9V	±15V	±0.1A	25mA	80	3000VDC	SMD24
EC3A07HS-E	4.5~9V	3.3V	0.6A	15mA	72	3000VDC	SMD24
EC3A11-E	9~18V	5V	0.6A	7.5mA	81	500VDC	DIP24
EC3A12-E	9~18V	12V	0.25A	10mA	84	500VDC	DIP24
EC3A13-E	9~18V	15V	0.2A	10mA	85	500VDC	DIP24
EC3A14-E	9~18V	±5V	±0.3A	15mA	82	500VDC	DIP24
EC3A15-E	9~18V	±12V	±0.125A	12mA	84	500VDC	DIP24
EC3A16-E	9~18V	±15V	±0.1A	15mA	85	500VDC	DIP24
EC3A17-E	9~18V	3.3V	0.6A	7.5mA	78	500VDC	DIP24
EC3A11M-E	9~18V	5V	0.6A	7.5mA	81	500VDC	DIP24
EC3A12M-E	9~18V	12V	0.25A	10mA	84	500VDC	DIP24
EC3A13M-E	9~18V	15V	0.2A	10mA	85	500VDC	DIP24
EC3A14M-E	9~18V	±5V	±0.3A	15mA	82	500VDC	DIP24
EC3A15M-E	9~18V	±12V	±0.125A	12mA	84	500VDC	DIP24
EC3A16M-E	9~18V	±15V	±0.1A	15mA	85	500VDC	DIP24
EC3A17M-E	9~18V	3.3V	0.6A	7.5mA	78	500VDC	DIP24
EC3A11H-E	9~18V	5V	0.6A	7.5mA	81	3000VDC	DIP24
EC3A12H-E	9~18V	12V	0.25A	10mA	84	3000VDC	DIP24
EC3A13H-E	9~18V	15V	0.2A	10mA	85	3000VDC	DIP24
EC3A14H-E	9~18V	±5V	±0.3A	15mA	82	3000VDC	DIP24
EC3A15H-E	9~18V	±12V	±0.125A	12mA	84	3000VDC	DIP24
EC3A16H-E	9~18V	±15V	±0.1A	15mA	85	3000VDC	DIP24
EC3A17H-E	9~18V	3.3V	0.6A	7.5mA	78	3000VDC	DIP24
EC3A11HM-E	9~18V	5V	0.6A	7.5mA	81	1500VDC	DIP24
EC3A12HM-E	9~18V	12V	0.25A	10mA	84	1500VDC	DIP24
EC3A13HM-E	9~18V	15V	0.2A	10mA	85	1500VDC	DIP24
EC3A14HM-E	9~18V	±5V	±0.3A	15mA	82	1500VDC	DIP24
EC3A15HM-E	9~18V	±12V	±0.125A	12mA	84	1500VDC	DIP24
EC3A16HM-E	9~18V	±15V	±0.1A	15mA	85	1500VDC	DIP24
EC3A17HM-E	9~18V	3.3V	0.6A	7.5mA	78	1500VDC	DIP24
EC3A11MS-E	9~18V	5V	0.6A	7.5mA	81	500VDC	SMD24
EC3A12MS-E	9~18V	12V	0.25A	10mA	84	500VDC	SMD24
EC3A13MS-E	9~18V	15V	0.2A	10mA	85	500VDC	SMD24
EC3A14MS-E	9~18V	±5V	±0.3A	15mA	82	500VDC	SMD24
EC3A15MS-E	9~18V	±12V	±0.125A	12mA	84	500VDC	SMD24
EC3A16MS-E	9~18V	±15V	±0.1A	15mA	85	500VDC	SMD24
EC3A17MS-E	9~18V	3.3V	0.6A	7.5mA	78	500VDC	SMD24
EC3A11HS-E	9~18V	5V	0.6A	7.5mA	81	3000VDC	SMD24
EC3A12HS-E	9~18V	12V	0.25A	10mA	84	3000VDC	SMD24
EC3A13HS-E	9~18V	15V	0.2A	10mA	85	3000VDC	SMD24
EC3A14HS-E	9~18V	±5V	±0.3A	15mA	82	3000VDC	SMD24
EC3A15HS-E	9~18V	±12V	±0.125A	12mA	84	3000VDC	SMD24
EC3A16HS-E	9~18V	±15V	±0.1A	15mA	85	3000VDC	SMD24
EC3A17HS-E	9~18V	3.3V	0.6A	7.5mA	78	3000VDC	SMD24
EC3A14S-E	9~18V	±5V	±0.3A	15mA	82	500VDC	SMD24
EC3A17S-E	9~18V	3.3V	0.6A	7.5mA	78	500VDC	SMD24
EC3A16S-E	9~18V	±15V	±0.1A	15mA	85	500VDC	SMD24
EC3A15S-E	9~18V	±12V	±0.125A	12mA	84	500VDC	SMD24
EC3A17HMS-E	9~18V	3.3V	0.6A	7.5mA	78	1500VDC	SMD24
EC3A13S-E	9~18V	15V	0.2A	10mA	85	500VDC	SMD24
EC3A12S-E	9~18V	12V	0.25A	10mA	84	500VDC	SMD24
EC3A11S-E	9~18V	5V	0.6A	7.5mA	81	500VDC	SMD24
EC3A11HMS-E	9~18V	5V	0.6A	7.5mA	81	1500VDC	SMD24
EC3A12HMS-E	9~18V	12V	0.25A	10mA	84	1500VDC	SMD24
EC3A13HMS-E	9~18V	15V	0.2A	10mA	85	1500VDC	SMD24
EC3A14HMS-E	9~18V	±5V	±0.3A	15mA	82	1500VDC	SMD24
EC3A15HMS-E	9~18V	±12V	±0.125A	12mA	84	1500VDC	SMD24
EC3A16HMS-E	9~18V	±15V	±0.1A	15mA	85	1500VDC	SMD24
