ARCV60-12S AC-DC ITE主機電源接口ARCH

發布信息時刻：2024-09-04 08:51:31 閱覽：5507

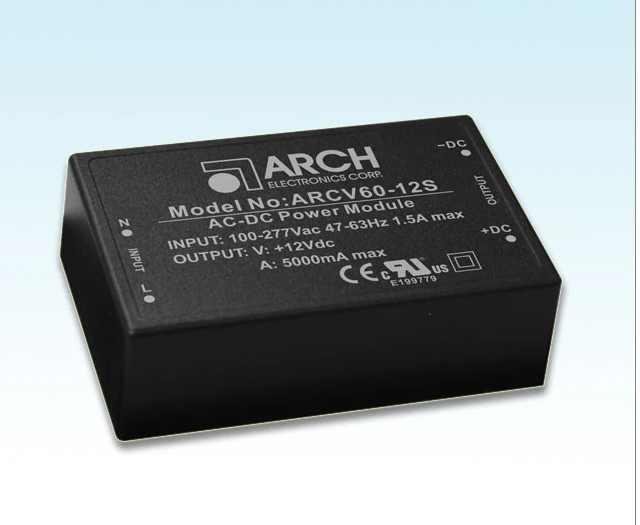

ARCV60-12S AC-DC ITE電源模塊ARCHg

　　ARCH ARCV60-12S AC-DC ITE電源模塊特點：

　　工作輸出效率：60W　　緊身寬度：2.924英尺 x 1.854英尺 x 0.914英尺　　寬進入標準：90至305VAC　　多端電壓輸入：12VDC, 15VDC, 24VDC　　高消毒霜交流電壓：4300VAC I/O消毒霜　　寬溫業務范疇：-40°C至+85°C　　工業節能制作：低空載功率 < 0.1W　　有能力率：達到了90%

規格參數：

Model No		ARCV60=128	ARCV60-15S	ARCV60-248
Max Output Wattage (W)		60W
input	Voltage	90-305 VAC or 120-430 VDC
	Frequency (Hz	47-63 Hz
	Current (Full load)	1500 mA max. (115 VAC)/1000 mA max. (230 VAC)
	Inrush Current(<2ms)	45 Amax. (115 VAC)/90 Amax. (230 VAC)
	Leakage Curren	0.25 mA max. (100-240 VAC)
	No Load Power Consumption	<0.1W(115/230 VAC)
Output	Voltage (V.DC)	12V	15V	24V
	Voltage Accuracy	±2%
	Current (mA)max	5000	4000	2500
	Line Regulaton (LL-HL)(typ.)	±0.5%
	Load Regulation (0-100%)(typ.)	±1%
	Minimum Load	0%
	Maximum Capacitive Load	6000 uF	5000 uF	1200 uF
	Rlpple &Noise (Full Load)	120mV	150mV	240mV
	Efficlency (at 230 VAC)	90%	90%	90%
	Hold-upTime (typ)	30ms (at 230VAC
Protection	Over Power Protection	Auto recovenry
	Over Voltage Protection	Zener diode clamp
	Short Circuit Protection	Hiccup mode (automatic recovery
Isolation	nput-Output (V.AC)	4300V
Environment	Operating Temperature	40°℃...+85°C (with derating)
	Storage Temperature	-40°℃...+85°℃
	Temperature Coefficlent	±0.05%/°℃
	Altitude During Operation(UL/IEC/EN 62368-1)	5000m
	Humidity	95%RH
	MTBF	>300,000 h@25℃ (MIL-HDBK-217F)
	Qver Voltage Category	Ⅲ:Compliance to EN 61558;altitude up to 2000 meters
	Vibration	IEC60068-2-6 (10-500Hz,2G 10min./1cycle,60min.each along X,Y,Z axes
	Shock	IEC60068-2-27
Physica	Dimensions(LxWx H)	2.92×1.85×0.91 Inches (74.2x47.0x23.1 mm) Tolerance ±0.5 mm,Height Tolerance±1 mm
	Case Material	Plastic resin(flammabilityto UL94V-0)
	Weight	158g
	Cooling Method	Free air convection
Safety	Approva	UL/IEC/EN 62368-1
	Meet	IEC/EN61558-1,IEC/EN 61558-2-16,IEC/EN 60335-1
EMC	EMI (Conducted &Radiated Emlssion)	EN 55032 class B
	EMS(Nolse Immunity)	EN 55035

廣州市立維創展科技開發受權代銷商ARCH電源開關方案食品，提拱極有利用率率，高貨品品質與小尺碼性狀的食品做到行業市場態勢和業務需求，并提拱技術設備不支持服務項目，喜歡詳詢。
