XP power QSB系例75-350W DCDC電原方案

頒布時期：2024-04-11 09:01:27 觀看：1086

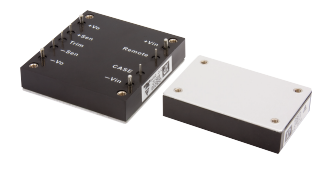

　　XP Power的QSB國產DC/DC電傳感器，打出熱工作效率依據在75~350W期間，是防護隔離式、快速且比較穩定的電避免計劃書。這樣的傳感器運用了專業的電路的設計的設計和技木，以作為漂亮的性能參數、快速率和穩定經濟性。


　　該類型電板塊享有很多種尺寸和運行環境，包涵有所不同的打出和打出交流電壓位置，以足夠各項操作的市場需求。其操作的溫度位置包含-40℃至+100℃，選擇了高瓦數體積設置，會在局限的區域空間內出示挺高的瓦數打出。凡此種種，電板塊支持軟件底板冷卻后，會提高更好的水冷散熱耐磨性，同時可確認qq遠程電腦開/關和qq遠程電腦感測器對其進行把控，滿足更智慧化的經營。

　　產品型號：

Models and Ratings QSB75/100 XP
nput Woltage	Otnut Vltag	Output Current	Input Current		Ehiclend	Model Number
nput Woltage	Otnut Vltag	Output Current	No Load	Full Load	Ehiclend	Model Number
9-36VDC (24V nominal)	3.3V	12.00 A	50 mA	2.04 A	81.0%	SB7524S3V3
	5.0V	12.00 A	50 mA	2.98 A	84.0%	QSB7524S05
	12.0V	6.25A	50 mA	3.64 A	86.0%	QSB7524S12
	15.0V	5.00A	50 mA	3.64 A	86.0%	QSB7524S15
	24.0V	3.12 A	50 mA	3.63 A	86.0%	QSB7524S24
18-75VDC (48V nominal)	3.3V	12.00 A	30 mA	1.10 A	82.0%	QSB7548S3V3
	5.0V	12.00 A	30 mA	1.47 A	85.0%	QSB7548S05
	12.0V	6.25 A	30 mA	1.82 A	86.0%	OSB7548S12
	15.0V	5.00 A	30 mA	1.80 A	870%	OSB7548S15
	24.0V	3.12 A	30 mA	1.80 A	870%	OSB7548S24
9-36 VDC (24V nominal)	3.3V	30.00A	120 mA	4.80 A	86.0%	OSB10024S3V3
	5.0V	20.00 A	120 mA	4.82 A	86.5%	OSB10024S05
	12.0V	8.30 A	80 mA	4.80 A	86.5%	QSB10024S12
	15.0V	6.70 A	80 mA	4.84 A	86.5%	QSB10024S15
	24.0V	4.17 A	80 mA	4.79 A	870%	OSB10024S24
18-75VDC (48V nominal)	3.3V	30.00A	60 mA	2.37 A	88.0%	QSB10048S3V3
	5.0V	20.00 A	60 mA	2.37 A	88.0%	OSB10048S05
	12.0V	8.30 A	30 mA	2.36A	88.0%	OSB10048S12
	15.0V	6.70 A	30 mA	2.38 A	88.0%	OSB10048S15
	24.0V	4.17 A	30 mA	2.37 A	88.0%	QSB10048S24

Models &Ratings					QSB150-350
nput Voltage	Output Woltage	Output Current	Input Curent*		Eclency	Model Number
nput Voltage	Output Woltage	Output Current	No Load	Ful Load	Eclency	Model Number
9-36VDC (24V nominal	3.3V	30.00 A	200 mA	4.75 A	870%	OSB15024S3V3
	5.0V	30.00A	200 mA	719 A	870%	QSB15024505
	12.0V	12.50 A	100 mA	710 A	88.0%	OSB15024S12
	15.0V	10.00 A	100 mA	7.19 A	870%	OSB15024S15
	24.0V	6.50 A	100 mA	734 A	88.0%	OSB15024S24
18-75VDC 48V nominal	3.3V	30.00A	100 mA	2.34 A	88.0%	OSB15048S3V3
	5.0V	30.00 A	100 mA	3.47 A	90.0%	OSB15048S05
	12.0V	12.50 A	50 mA	3.44 A	91.0%	OSB15048S12
	15.0V	10.00 A	50 mA	3.47 A	90.0%	OSB15048S15
	24.0V	6.50A	50 mA	3.61 A	90.0%	OSB15048S24
10-36VDG 24V nominal	3.3V	S?.00 A	150 mA	Z90 A	870%	OSB20024S3V3
	5.0V	40.00 A	150 mA	9.58 A	870%	QSB20024S05
	12.0V	16.70 A	100 mA	9.71 A	86.0%	OSB20024S12
	15.0V	13.30 A	100 mA	9.67 A	86.0%	OSB20024S15
	24.0V	8.30 A	100 mA	9.54A	870%	OSR20024S2
	48.0V	4.20 A	60 mA	9.77 A	86.0%	OSB20024S48
18-75VDC 148V nominal	3.3V	40.00 A	80 mA	3.13 A	88.0%	OSB20048S3V3
	5.0V	40.00 A	80 mA	4.69 A	89.0%	OSB20048S05
	12.0V	16.70 A	60 mA	4.74 A	88.0%	QSB20048S12
	15.0V	13.30 A	60 mA	4.72 A	88.0%	OSB20048S15
	24.0V	8.30 A	60 mA	772 A	88.0%	OSB20048S24
	48.0V	4.20 A	50 mA	4.83 A	870%	OSB20048S48
18-36 VDC 24V nominal	3.3V	70.0 A	130 mA	10.94 A	88.0 %	OSB35024S3V3
	5.0V	70.0 A	250 mA	16.29 A	89.5 %	OSB35024S05
	12.0V	29.2 A	220 mA	15.96 A	91.5%	OSB35024S12
	24.0V	14.6 A	40 mA	16.22 A	90.0%	OSB35024S24
	28.0V	12.5 A	50 mA	16.03 A	91.0%	OSB35024S28
	48.0V	Z3 A	60 mA	16.22 A	90.0%	OSB35024S48
36-75VDC 48 V nominal	3.3V	70.0 A	80 mA	5.41 A	89.0%	OSB35048S3V3
	5.0V	70.0 A	120 mA	8.01 A	91.0%	OSB35048S05
	12.0V	29.2 A	100 mA	Z89 A	92.5%	OSB35048S12
	24.0V	14.6 A	40 mA	798 A	91.5%	OSB35048S24
	28.0V	12.5 A	30 mA	788 A	92.5%	OSB35048S28
	48.0V	Z3 A	60 mA	793 A	92.0%	OSB35048S48

珠海市立維創展網絡局限平臺授權證書代銷商銷售額XP POWER電模組品牌設備。品牌設備收錄：AC-DC電源開關、DC-DC改變器、高壓低壓AC-DC交流電源、壓力DC-DC轉成器、rf射頻外接外接電源平臺、單相外接外接電源。歡迎語管理咨詢。
