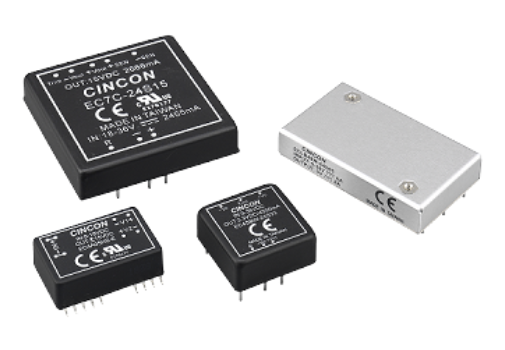

CINCON電源開關模塊圖片DIP / SMD 3-75W

上架時候：2020-11-13 14:29:38 閱讀：2448

CINCON開關電源公司設計和制造了3W-75WDC/DC轉換器，具有工業標準和引腳布置的特點。CINCON電源開關電源模塊DIP / SMD 3-75W包括速度高、工作的溫度表高、錄入規模廣的特征。CINCON交流電源還可以為各種類型軟件出具了非防曬隔離霜和高防曬隔離霜的DC/DC調換器。

杭州市立維創展科學技術十分有限集團欧美一二区-欧美亚洲一区-欧美激情一区-欧洲一区二区是CINCON電壓功能模塊的零售商商，展示 CINCON供電組件電流電、交電流供電、LED24v電源等，原新產品原產，產品質量保障，價值長處，熱烈歡迎咨詢服務。

祥情理解CINCON24v電源請點一下：//www.takasago.net.cn/article/2177.html

2:1 Input Range

Model	Power	Input Voltage	Output Voltage	Features	Dimensions (Inch)
EC3A	3W	4.5~6V, 9~18V, 18~36V, 36~72V	3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V	500/1.5K/3KVdc Isolation UL60950-1	1.25x0.80x0.40(DIP24) 1.25×0.80x0.45(SMD24)
EC3AB	3W	9~18V, 18~36V, 36~72V	3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V	500/1.5K/3KVdc Isolation EN55022 Class B UL60950-1	1.25x0.80x0.50(DIP24) 1.25x0.80x0.55(SMD24)
EC3A-E	3W	4.5~9V, 9~18V, 18~36V, 36~72V	3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V	500/1.5K/3KVdc Isolation EN55022 Class A UL60950-1	1.25x0.80x0.40(DIP24) 1.25×0.80x0.45(SMD24) 1.25×0.80x0.41(SMD24)
EC4A	6W	9~18V, 18~36V, 36~72V	3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V	500/1.5K/3KVdc Isolation UL60950-1	1.25x0.80x0.40(DIP24) 1.25×0.80x0.45(SMD24)
EC4AB	6W	9~18V, 18~36V, 36~72V	3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V	500/1.5K/3KVdc Isolation EN55022 Class B UL60950-1	1.25x0.80x0.50(DIP24) 1.25x0.80x0.55(SMD24)
EC4A-E	6W	9~18V, 18~36V, 36~72V	3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V	500/1.5K/3KVdc Isolation EN55022 Class A UL60950-1	1.25x0.80x0.40(DIP24) 1.25×0.80x0.45(SMD24) 1.25×0.80x0.41(SMD24)
EC6A	7.5W	9~18V, 18~36V, 36~72V	3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V	1.5KVdc Isolation UL60950-1	1.25x0.80x0.40(DIP24) 1.25×0.80x0.45(SMD24)
EC2SB	10W	4.7~9V, 9~18V, 18~36V, 36~75V	3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V	1.5KVdc Isolation	1.00x1.00x0.40(DIP) 1.00x1.00x0.36(SMD)
EC4BE	10W	9~18V, 18~36V, 36~72V	5V, 12V, 15V, ±5V, ±12V, ±15V	500Vdc Isolation EN55022 Class A	2.00x1.00x0.40(DIP)
EC4BU	10W	4.7~9V, 9~18V, 18~36V, 36~75V	3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V	1.5KVdc Isolation EN55022 Class A	2.00x1.00x0.40(DIP)
EC7A	10W	9~18V, 18~36V, 36~75V	2.5V, 3.3V, 5V, 12V, 15V, ±12V, ±15V	1.5KVdc Isolation UL60950-1	1.25x0.80x0.40(DIP24) 1.25×0.80x0.45(SMD24)
EC3SB	15W	9~18V, 18~36V, 36~75V	3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V	1.5KVdc Isolation	1.00x1.00x0.40(DIP) 1.00x1.00x0.36(SMD)
EC5BU	15W	9~18V, 18~36V, 36~75V	3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V	1.5KVdc Isolation EN55022 Class A	2.00x1.00x0.40(DIP)
EC5BE	15W	9~18V, 18~36V, 36~72V	3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V	500Vdc Isolation EN55022 Class A	2.00x1.00x0.40(DIP)
EC7B	20W	9~18V, 18~36V, 36~75V	1.8V, 2.5V, 3.3V, 5V, 12V, 15V, ±12V, ±15V	1.5KVdc Isolation	2.00x1.00x0.40(DIP)
EC6C	30W	9~18V, 18~36V, 36~72V	3.3V, 5V, 12V, 15V, 5/±12V, 5/±15V, ±5V, ±12V, ±15V	500Vdc Isolation EN60950-1	2.00x2.00x0.40(DIP)
EC7C	40W	9~18V, 18~36V, 36~75V	2.5V, 3.3V, 5V, 12V, 15V, 3.3/5V, 3.3/±12V, 3.3/±15V, 5/±12V, 5/±15V, ±12V, ±15V	1.5KVdc Isolation EN60950-1	2.00x2.00x0.40(DIP)

4:1 Input Range

	Model	Power	Input Voltage	Output Voltage	Features	Dimensions (Inch)
	EC3AW	3W	9~36V, 18~72V	3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V	500/1.5K/3KVdc Isolation	1.25x0.80x0.40(DIP24) 1.25×0.80x0.45(SMD24)
	EC4AW	6W	9~36V, 18~72V	3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V	1.5K/3KVdc Isolation	1.25x0.80x0.40(DIP24) 1.25×0.80x0.45(SMD24)
	EC6AW	8W	9~36V, 18~75V	3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V	1.5KVdc Isolation EN50155 Compliant	1.25x0.80x0.40(DIP24) 1.25×0.80x0.45(SMD24)
	EC2SBW	10W	9~36V, 18~75V	3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V	1.5KVdc Isolation	1.00x1.00x0.40(DIP)
	EC4BW	10W	9~36V, 18~72V	3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V	500Vdc Isolation EN55022 Class A	2.00x1.00x0.40(DIP)
	EC6AW-110	10W	43~160V	3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V	3KVdc Isolation UL60950-1 & CB EN45545-2 EN50155 Compliant	1.25x0.80x0.50(DIP24)
	EC8AW	15W	9~36V, 18~75V	3.3V, 5V, 12V, 15V, ±12V, ±15V	1.5KVdc Isolation EN55022 Class A	1.25x0.80x0.40(DIP24)
	EC3SBW	15W	9~36V, 18~75V	3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V	1.5KVdc Isolation	1.00x1.00x0.40(DIP)
	EC5BW	15W	9~36V, 18~75V	3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V	1.5KVdc Isolation EN55022 Class A	2.00x1.00x0.40(DIP)
	EC5C	15W	9~36V, 18~72V	3.3V, 5V, 12V, 15V, 5/±12V, 5/±15V, ±5V, ±12V, ±15V	500Vdc Isolation EN60950-1	2.00x2.00x0.40(DIP)
	EC1SC	20W	9~36V, 18~72V	3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V	EN55022 Class A	2.00×1.60×0.45(DIP)
	EC4SBW	20W	9~36V, 18~75V	3.3V, 5V, 12V, 15V, ±12V, ±15V	1.5KVdc Isolation	1.00x1.00x0.40(DIP)
	EC7BW-110	20W	43~160V	5V, 12V, 15V, ±12V, ±15V	3KVdc Isolation UL60950-1 EN45545-2 EN50155 Compliant	2.00x1.00x0.40(DIP)
	EC7BW	20W	9~36V, 18~75V	3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V	1.5KVdc Isolation EN45545-2 EN50155 Compliant	2.00x1.00x0.40(DIP)
NRND	EC3SCW	30W	9~36V, 18~75V	3.3V, 5V, 12V, 15V	1.5KVdc Isolation EN60950-1	2.00×1.60×0.40(DIP)
	EC5SBW	30W	9~36V, 18~75V	3.3V, 5V, 12V, 15V, ±12V, ±15V	1.5KVdc Isolation	1.00x1.00x0.40(DIP)
	EC9BW	30W	9~36V, 18~75V	3.3V, 5V, 12V, 15V, ±12V, ±15V	1.5KVdc Isolation	2.00x1.00x0.40(DIP)
	ECLB40W	40W	9~36V, 18~75V	3.3V, 5V, 12V, 15V, ±12V, ±15V	1.5KVdc Isolation With Mounting Inserts	2.05x1.20x0.40(DIP)
	ECLB40W-110	40W	43~160V	3.3V, 5V, 12V, 15V, ±12V, ±15V, ±24V	3KVdc Isolation UL60950-1 EN45545-2 EN50155 Compliant	2.05x1.20x0.40(DIP)
	ECLB60W	60W	9~36V, 18~75V	3.3V, 5V, 12V, 15V, ±12V, ±15V	1.5KVdc Isolation With Mounting Inserts	2.05x1.20x0.40(DIP)
NEW	ECLB75W	75W	18~75V, 9~36V	5V, 12V, 15V, ±12V, ±15V, ±24V	2.25KVdc Isolation With Mounting Inserts	2.05x1.20x0.40(DIP)

18:1 Input Range

	Model	Power	Input Voltage	Output Voltage	Features	Dimensions (Inch)
NEW	EC7BW18	20W	8.5~160V	12V, 15V, 5V, ±12V, ±15V, ±24V	3KVac Isolation UL62368-1 EN45545-2 EN50155 Compliant	2.00x1.00x0.40(DIP)

High Isolation 6KV

	Model	Power	Input Voltage	Output Voltage	Features	Dimensions (Inch)
	EC4AW-H6	5-6W	9-36V, 18-72V	5V, 12V, +/-12V, +/-15V	6KVdc Isolation EN55022 Class A 5uA Leakage Current	1.25x0.80x0.40 (DIP24)

+/-10% Input Range

	Model	Power	Input Voltage	Output Voltage	Features	Dimensions (Inch)
	EC3AE	3W	5V, 12V, 24V, 28V, 48V	12V, 15V, 5V, ±12V, ±15V		1.25x0.80x0.40(DIP24) 1.25×0.80x0.45(SMD24)
