簡體中文
微波通信元元器
| 訂貨型號 | 替代型號 (SouthWest) | Profile | Gender | Pin/Dielectric Diameters(inch) | Max. Frequency |
| C-292-07A-6 | 292-07A-6 | 標準 | Female | 0.005/0.03 | 27 GHz |
| C-292-06A-6 | 292-06A-6 | 0.007/0.03 | |||
| C-292-05A-6 | 292-05A-6 | 0.007/0.03 | |||
| C-292-04A-6 | 292-04A-6 | 0.01/0.05 | |||
| C-293-04A-6 | 293-04A-6 | Male | 0.005/0.03 | 27 GHz | |
| C-293-03A-6 | 293-03A-6 | 0.007/0.03 | |||
| C-293-02A-6 | 293-02A-6 | 0.007/0.03 | |||
| C-293-01A-6 | 293-01A-6 | 0.01/0.05 |

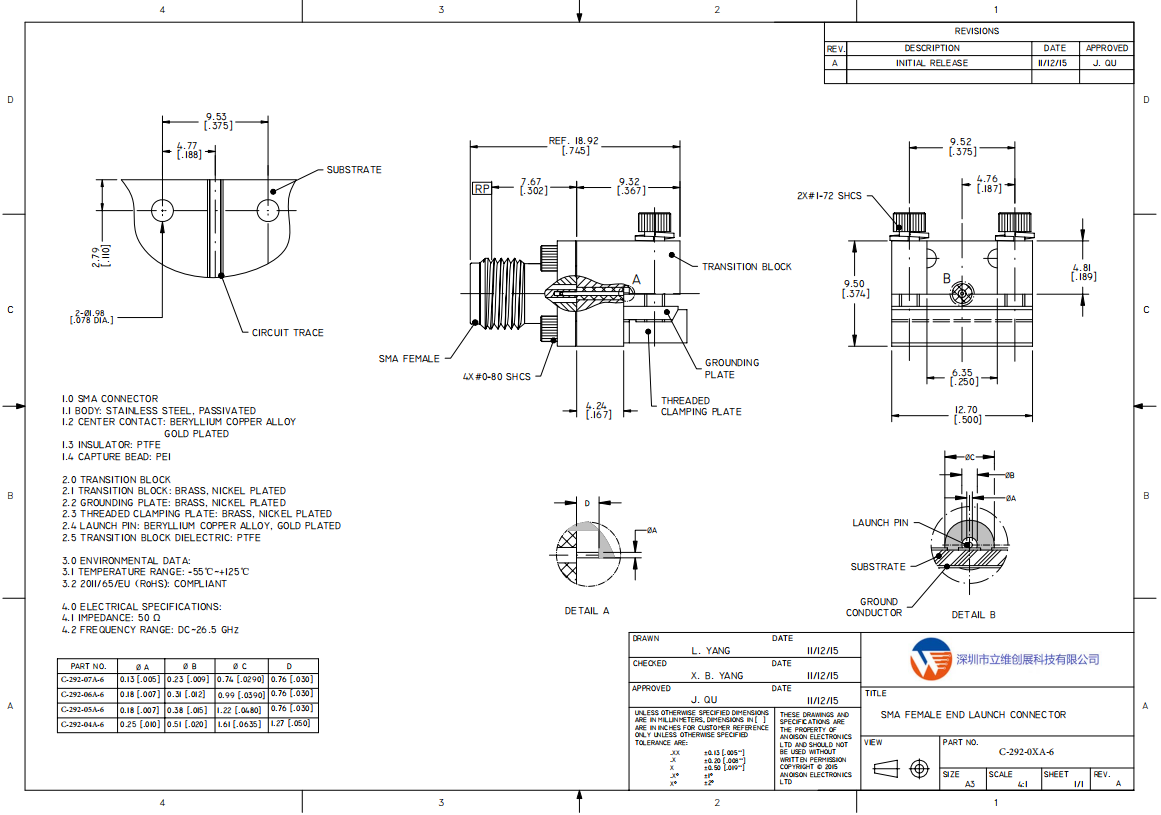

C-292-0XA-6 產品規格書下載
系列產品產品End launch型號書安裝
