微波加熱元配件
1700 – 6000 MHz
Broadband
Low Loss
High Isolation
90 deg Quadrature
Surface Mountable
CTE Matched
Tape and Reel Option
Specifications

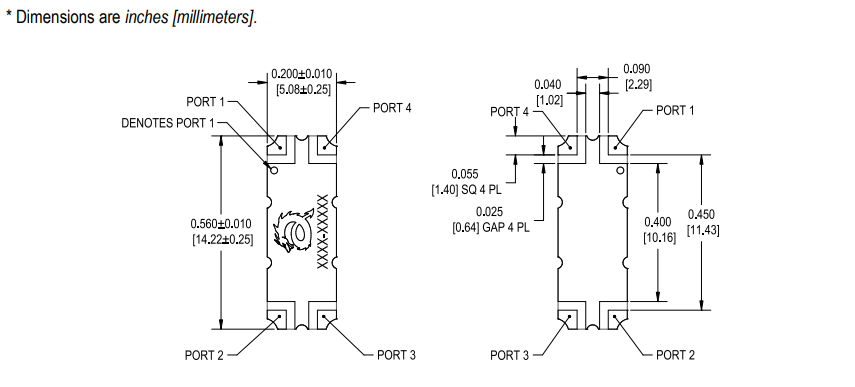

- Size: .560 x .200 inches
- Frequency: 1700-6000 MHz
- Power: 85 W
- Insertion Loss: .17 dB
- Amplitude Balance: ± 1
- Isolation: 18 dB
- VSWR: 1.25
- Phase Balance: ± 2
