VICOR電源控制器FARM?濾波器重新調準整流控制器

頒布時：2020-12-23 16:58:32 訪問：2443

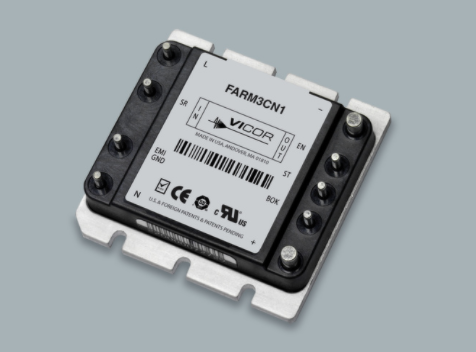

VICOR供電FARM?濾波器全全自動整流板塊電源都是個交流電前端開發板塊電源，供應EMI濾波器、全全自動整流器和浪涌瞬時電流限定。FARM?濾波器采用半磚包裝，500/750 W或750/1000 W型號的尺寸僅為2.28英寸x 2.2英寸x 0.5英寸。VICOR電原FARM?可馬上連入到世界級各區域的交流活動電源模塊。可使用VICOR 300VIN DC-DC切換器做調接，變現定時調接、低密度計算公式、薄式轉換開關供電。

亮點及獨到之處

EMI濾波

電腦自動調節高壓線路整流

浪涌電壓電流限定

半磚二極管封裝

鄭州市立維創展科技創新是VICOR電功能的銷售銷售商，通常供給DC-DC、AC-DC電輸出傳感器，丟開開、非丟開開電輸出傳感器變為器等，立維創展致力于為合作方可以提供高效率質量管理、堅持創新驅動管理量、的價格公平的徽波元器材護膚品,感謝了解和咨詢.

*部門VICOR主機電源模塊圖片技術參數請練習我們大家的銷售額項目技術員！

VICOR電源FARM?濾波器自動調節整流模塊

Part Number	輸出功率	物料等級分類	引腳形態	符合RoHS	的基板
FARM2TS3	750 W / 1,000 W	–40°C to +100°C	Short ModuMate	No	Through hole
FARM2TS1	750 W / 1,000 W	–40°C to +100°C	Short ModuMate	No	Slotted
FARM2TN3	750 W / 1,000 W	–40°C to +100°C	Long ModuMate	No	Through hole
FARM2TN2	750 W / 1,000 W	–40°C to +100°C	Long ModuMate	No	Threaded
FARM2TN1	750 W / 1,000 W	–40°C to +100°C	Long ModuMate	No	Slotted
FARM2TG3	750 W / 1,000 W	–40°C to +100°C	Long RoHS	Yes	Through hole
FARM2TG2	750 W / 1,000 W	–40°C to +100°C	Long RoHS	Yes	Threaded
FARM2TG1	750 W / 1,000 W	–40°C to +100°C	Long RoHS	Yes	Slotted
FARM2TF3	750 W / 1,000 W	–40°C to +100°C	Short RoHS	Yes	Through hole
FARM2TF2	750 W / 1,000 W	–40°C to +100°C	Short RoHS	Yes	Threaded
FARM2T23	750 W / 1,000 W	–40°C to +100°C	Long	No	Through hole
FARM2T22	750 W / 1,000 W	–40°C to +100°C	Long	No	Threaded
FARM2T21	750 W / 1,000 W	–40°C to +100°C	Long	No	Slotted
FARM2T13	750 W / 1,000 W	–40°C to +100°C	Short	No	Through hole
